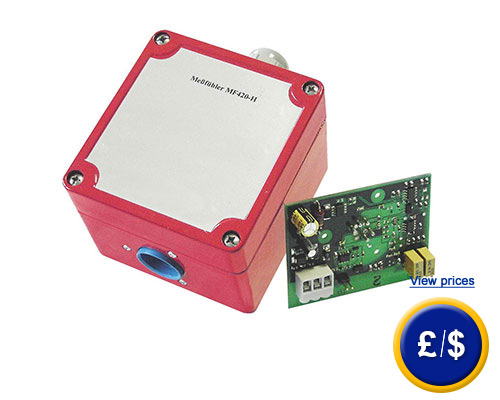

CO2 Measuring System MF-420IR

CO2 measuring system for measurements of carbon dioxide / aluminium casing / detection of absolute CO2 concentration / linear measuring range

The CO2 measuring system MF -420IR - CO2 determines by means of a specific infrared sensor the carbon dioxide concentration in the air with a surrounding temperature of -10 to +50 °C. It is robust, compact and maintenance - free in its common application. The enclosure of the CO2 measuring system is made of aluminium and therefore customized for wall-montage. Because the evaluation and processing of the measuring signals follow a digital algorithm and material and construction of the measuring cuvette are novel, the infrared measuring system MF420-IR-CO2 recognizes the carbon dioxide concentration quicker, more accurate and is well-priced compared to common IR systems. The infrared measuring system detects the absolute CO2 concentration in the surrounding air, monitors constantly its own operation and reports malfunctions in hard- and software. The whole measuring range is linear. For power supply there is 24 V direct current acquired. Processing and display of the measuring signals (linear current output, eligible 4 to 20 mA or 0 to 10 V) are integrated in the measuring system. The evaluation and processing of the measuring takes place in a downstreamed device according to its specifications (e.g. ventilation system, PLC, limit monitor, display). For a connection with the Ethernet, if required, a module that transfers the analogue measuring data into the network is available. For common applications a calibration is not necessary, but it can be performed by specialists if demanded. Further CO2 measuring systems you will find following this link here. An explanation of the air quality and what effect a raising carbon dioxide concentration has on the human body you will see under the following link: explanation air quality. If there are any questions about the CO2 measuring system MF-420 IR, please contact us: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. An overview of all CO2 measuring systems can be found here: CO2 measuring systems Our technicians and engineers will be happy to help you with this CO2 measuring system and all other products in the field of measuring instruments, regulation and control and scales.

- Infrared sensor for carbon dioxide
- For common operation maintenance-free
- Aluminium enclosure
- For wall montage fitted
- Comfortable power supply

- Standard measuring ranges:
0-3,000 ppm (0.3 vol%)
0-6,000 ppm (0.6 vol%)
0-10,000 ppm (1 vol%)
0-50,000 ppm (5 vol%)

Technical specification

Transmitter

Power supply

screw clips

Current

approx. 100 mA: output 24 V

Connections
Pin 1
Pin
Pin

0 V
24-20 mA or 0-10 V
324 VDC ± 5%

Pin 1

LED on top, bottom and sidewise
95 dB
Vibration

Surrounding temperature

-10…+50 °C

Air pressure

900…1100 hPa

Humidity

15…95% RH

Output

4-20 mA (max. resistance 450 Ω)

Protection type

IP 40

Measures

90 x 85 x 65 mm

Weight

approx. 500 g

Connection line

3x1.52 Cu + functional earth (cable shielded)

Length

50 Ω conductor and return- conductor

Sensor

Gas access

via diffusion

Measuring range
0 ... 3,000 ppm
0 ... 6,000 ppm CO2
0 ... 10,000 ppm CO2
0 ... 50,000 ppm

i.e. 0…0.3 vol% CO2
i.e. 0…0.6 vol% CO2
i.e. 0…1.0 vol% CO2
i.e. 0…5.0 vol% CO2

Heat-up time

5 min

Accuracy

±2 % from measuring range

Reproducibility

±1 % from measuring range

Response time

approx. 30 sec

Delivery content:
1 x CO2 measuring system MF -420IR, instruction manual
Additionally:
- ISO calibration

Further ranges on demand
- Output 4-20 mA or 0-10 V
- Accuracy during measuring of carbon dioxide ± 2% of measuring range
Technical specification
