Digital Force Gauge of FG-Series (0 to 49 N and 0 to196 N)
with RS-232 interface for force data output
|
|
This digital push pull force gauge measures the tension or compression force applied to the probe. The force gauge has a precision force transducer to measure the compressive and tensile forces (pull/push). It is very easy to operate and to carry out.
For direct data output this force gauge has RS-232 interface. In combination with the additional connection cable and the software it is very simple to transfer the data to a computer or laptop.
The force gauge is mainly used in industrial, research & development and various educational force measurement applications. So the gauge is valuable in production, packaging testing, transportation testing.
|
|
- Lightweight
- Robust housing
- Provides fast and accurate force measurements
- Microprocessor provides 0.4 % accuracy
- Zero/tare control
- Peak readings/peak hold
- High resolution portable device provides
readings of tension (pull) or compression
(push) in 1 g increments
- Large 5 digit LCD display - battery or optional
AC operated
- Test stand mounting possible
|
|
|
|
| Technical specifications: |
| Force gauge model |
FG 5 K FG 20 K |
| Range |
0 to 5 kg/49 N 0 to 20 kg/196 N |
| Resolution |
1 g/0.05 oz/0.01 N 10 g/0.01 lb/0.05 N |
| Accuracy |
± 0.4 % + 1 digit ± 0.5% + 2 digit |
| Display |
5 digit LCD, 10 mm height |
| RS-232- interface for data output |
yes |
| Power supply |
6 x 1.5 V AA battery or mains adaptor |
| Net weight |
551 g |
| Dimensions |
208 x 82 x 37 mm 227 x 83 x 39 mm |
|
Delivery content:

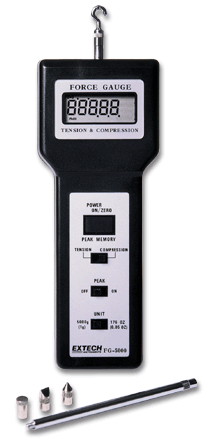

Force gauge FG (model 5 K or model 20 K), hooks, adaptors, pins (as shown on the picture above), carry case, user manual
|
|
Additional components (please order separately)
- Software and RS-232 computer connection cable
- ISO calibration certificate
- Test stand
- Mains adaptor
- Wedge grip
|
 |
 |
|
