PCE-L100 Lux meter

PCE- L 100 Lux Meter for luminous density and intensity
lux meter for light intensity with internal memory / Class A to meet CIE / graphic display / statistical analysis / with many accessories

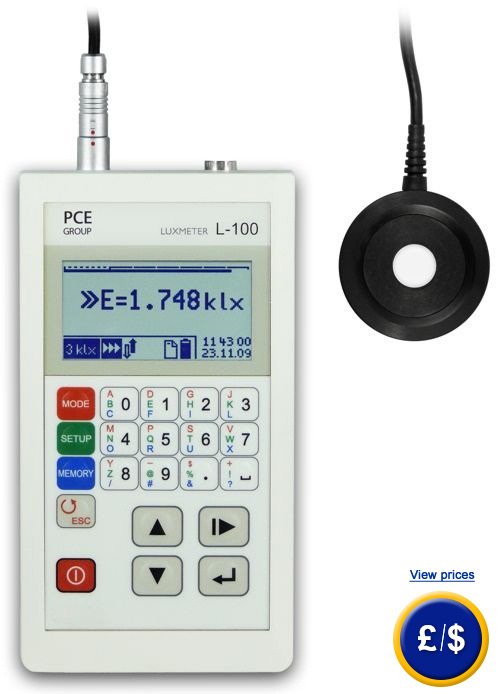

The PCE-L 100 Lux Meter for light density and intensity is a device to measure light waves. The PCE-L 100 Lux Meter measures light intensity and both natural and artificial rays accurately as well as overlay and remote light density. The high quality PCE- L 100 Lux Meter meets the requirements of the International Commission on Illumination (CIE) as well as precision Class A requirements. The PCE-L 100 Lux Meter comes with a graphic display which can display different measurement values at the same time. On the PCE-L 100 lux meter display, you will see measurement values, current measurement and statistics formed by max., min. and average values as well as the relation between max./min. and average values. It is possible to display the percentage by introducing a reference value in the PCE-L 100 Lux Meter to make the measurement analysis easier. The PCE-L 100 Lux Meter offers 5 measurement types: single measurement, single measurement in %, continuous measurement, continuous measurement in % and integrating measurement (measurement of the field of illumination). The PCE-L 100 Lux Meter has a wide measurement range from 0.001 up to 300 klx divided in three different measurement ranges and can be changed from manual to automatic mode. Measurement values can be stored in the internal memory (512 values) including comments (16 characters), for example, place and person who performed the measurement. There is also an external memory for 511 values via the USB port. Data can be recorded both manually or automatically by selecting a measurement quota. The PCE-L 100 Lux Meter will display the time of the record depending on the measurement quota. Recorded data have the following information: date and time, comment (place and person who performed the measurement), measurement value, measurement unit, statistics, max., min., and average values as well as the relation between min., max., and average value. Data can be analysed and edited via the software that is included in the delivery. The PCE-L 100 Lux Meter can be adapted to some additional accessories indicated below. The PCE-L 100 Lux Meter can operate as a luminance meter for measurements with a measurement angle of 1º, 3º and 10º of the luminous source. Thanks to its high accuracy, its price and durability, the PCE-L 100 Lux Meter is used in many professional sectors where a precise instrument is required. At the following link you will find the lux meters which will suit your needs.

- Class A according to CIE
- High quality silicon photodiode.
- Large measurement range up to 300 klx
- Manual or automatic range selection
- Multiple display of values (graphic display)
- Single, continuous or relative measurement
- Automatic and manual record
- Memory capacity of 512 values
(including a comment)
- Memory can be expanded
- Analysis software is included

- Calibration function
- Solid housing
- Statistics
- Carrying case
- Overlay measurement (with accessories)
- Remote measurement (with accessories)
- Measurement angle of 1º, 3º and 10º
- Sensor stand (accessory)

View or print uiser manual of the PCE-L 100 Lux Meter

Technical specifications

Standards

A (CIE)

Accuracy

Total error: ≤2.5% ±1 LSB
lineal error: <1%
Influence of temperature ±%/ºC: max. 0.07
Spectral adaptation ƒ1 ≤2% (CIE)
Cosine adaptation ƒ2 ≤1.5% (CIE)

Measurement ranges

0.001 lx ÷ 30 lx
0.1 lx ÷ 3000 lx
10 lx ÷ 300 klx

Measurement units

lx or cd/m2 in measurement of light density

Measurement quota

1 measurement per second

Sensor

Silicon photodiode
Spectral filter V(ʎ) (CIE)
Cosine correction
Dimensions: Ø44 x 25.5 mm
1.5 m cable

Display

LCD graphic display (128 x 64)

Memory

512 cells of internal memory (measurement value including statistics and comment)
Automatic or manual data record (511cells of external memory through the external USB)

Interface

RS-232

Software

Analysis software

Power

9 V battery
Operation > 20 hours

Operating conditions

0 ºC - 40 ºC/≤80% r.H.

Dimensions

152 x 83 x 33 mm

Weight

250 g

Images of the use of the PCE-L 100 Lux Meter

The PCE-L 100 Lux Meter measuring illumination

The PCE-L 100 Lux Meter with an extension

PCE- L 100 accurate lux meter: Remote measurement of luminous density
Remote measurement of luminous density

Software sensor connections and memory of the PCE-L 100 Lux Meter

Accurate lux meter: Luminous density including statistics PCE L 100
Luminous density including statistics

Reference measurement of the
PCE-L 100 Lux Meter

Delivery content
1 x PCE-L 100 Lux Meter, 1 x silicon photodiode, 1 x extension, 1 x software, 1 x carrying case and user manual

Accurate lux meter for luminous density and intensity PCE L 100 probe
The extension of the lux meter sensor allows measurements in places with a difficult access. The extension is formed by two plastic elements for a length of 55 cm (cable length: 1.5 m)

In this image you can see the content of the carrying case for the lux meter L100

Additional components

Accurate lux meter for luminous density and intensity PCE L 100 density adapter

Light density adapter:
The PCE-L 100 Lux Meter can be turned into a luminance meter with the luminous density adapter, that means light intensity on the surface (cd/m2). Dimensions: Ø50 x 43 mm.

D = 12.5 mm
2α= 68°
2δ= 107

Light density adapter:
There is an adapter with a measurement range of 1º for remote measurements of light density from 1 m up to infinity. This adapter can be mounted on a tripod. The lens is 100 mm f/2.5. Measurements can be monitored from the lux meter itself or from the luminous density adapter. Dimensions of the luminous density adapter: 126 x 169 x 44 mm, weight: aprox. 550 g. Measurement surfaces are found in the PCE-L 100 Lux Meter user manual.

Accurate lux meter for luminous density and intensity PCE L 100 density adapter2

L (cd/m ")
1º	2º	10º
0.1 ÷ 12 k	0.01 ÷ 1.2 k	0.001 ÷ 120 k
10 ÷ 1.2 M	1 ÷ 120 k	0.1 ÷ 12 k
1 k ÷ 120 M	100 ÷ 12 M	10 ÷ 1.2 M

Accurate lux meter for luminous density and intensity PCE L 100 external memory usb

External memory:
Connection with a USB for 511 measurement values including statistics, min., max., average value and relation between max., min. and average values as well as the comment (16 characters: place and person who performed the measurement).

USB-RS232 Adapter:
The data cable RS-232 is normally sent with the software kit. The USB adpater is necessary to transfer measurement values to a notebook or a PC.

Accurate lux meter for luminous density and intensity PCE L 100 usb rs232 adapter

Accurate lux meter for luminous density and intensity PCE L 100 ISO Calibration certificate

ISO Calibration certificate
For companies that wish to include the PCE-L 100 Lux Meter in their set of internal quality tools or for an annual recalibration.
An ISO certification consists of a laboratory calibration and a certificate according to the ISO standard. The document contains the name of the company or customerr.
