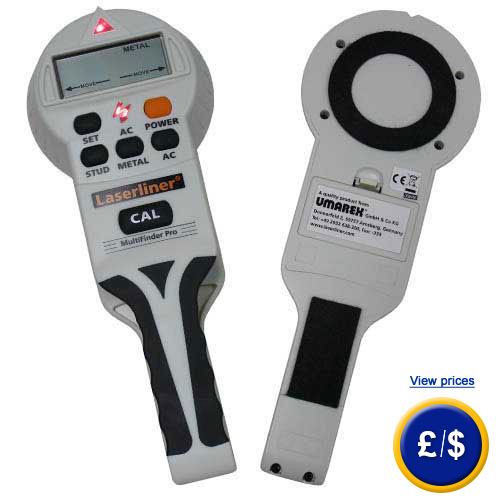

Detector / Metal-Scanner MultiFinder Pro
Multifunctional detector for wood, metal, copper, iron and power supply line / via several integrated sensors / measures up to 10 cm deep

A detector for all applications: Via several integrated sensors the MultiFinder Pro is a useful detector for various applications. The Metal-Scanner detects wood, iron, copper and live conductor lines. With its simple operation, the LC-Display the MultiFinder can be used easily and safely. Additionally, the acoustical and optical signals facilitate the finding of various objects. The functional reliability is guaranteed with these special warnings. Up to now, drilling and attachment work were risky jobs.
The gauge provides you with clarity about the material which is located in the wall, floor or ceiling. With the detector, you know that you will be able to achieve your goal quickly, precisely and without additional effort. Here, you can see an overview of our other high-quality cable trackers. If you have further questions concerning the metal detector MultiFinder Pro, take a look at the following technical data or call our hotline: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will be pleased to inform you concerning the metal detector MultiFinder Pro or any other product in terms of regulation and control, or scales and balances of PCE Instruments.

- LC-display with prompting
- Permanent voltage warning
- Underground-protecting felt slide

- Search depth 10 cm
- Beam-/ void-/ metal-/ conductive geolocation
- Drilling point safety

keyboard of the metal scanner

Technical data

Maximum search depth

10cm

Measuring range

Stud scan: 3 cm (wood, metal)
Metal-scan: 5 cm to 10 cm (copper, ferric)
AC-Scan: 4 cm

Reading

Arrows on the LCD

Measure-Mode

STUD-Scanner:
Electronic recognition of stone- and concrete walls. The detector recognizes hidden metal in all non-metal materials such as stone, concrete, screed, wood, gypsum fireboards, aerated concrete, ceramic and mineral building materials.

Metal-Scanner:
Detection of metal in stone and concrete walls.
The detector detects hidden metal in every non-metallic material like stone, concrete, attic, wood, gypsum fiberboards, gas concrete, ceramic and mineral material.

AC-Scanner:
Location of live conductor lines under plaster and wood panels and other non-metal boarding. Live conductor lines cannot be located in drywall installation walls with reinforced steel work system.

Power Supply

9 V block-battery

Warning

optical and acoustical

Weight

250 g

Application examples

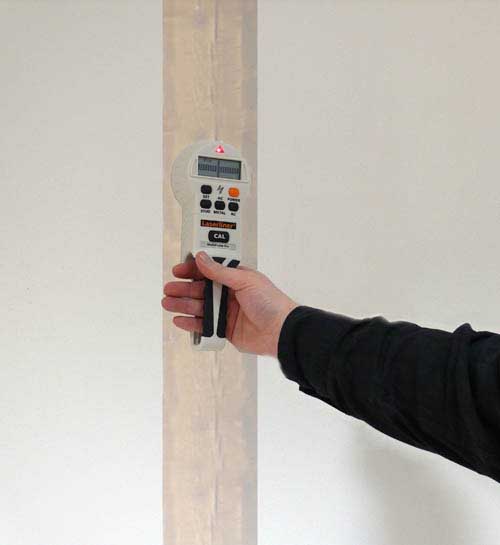

A detector searching hidden wood beams in the wall.

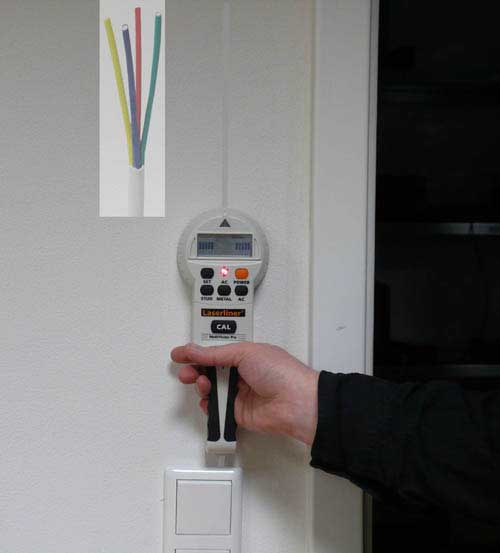

Metal-scanner searching hidden pathways in the wall.

Delivery content

1 x Detector / Metal-Scanner MultiFinder Pro, 1 x 9 V Block-Battery, 1 x Manual
