Satellite

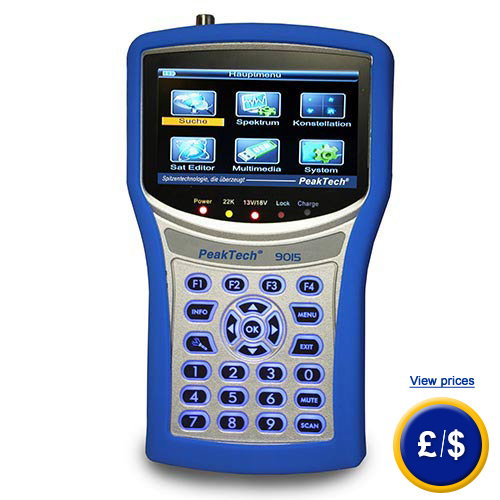

Indicator PeakTech PKT 9015 |
|
|
The
satellite Indicator PeakTech PKT 9015 was developed according to the latest
technical standard DVB-S2 and is suitable for universal use in the field of
installation and maintenance of digital TV satellite receiving systems. Due to
USALS- and DiSEqC operator interface it can be used very well to align
electronically rotating equipment. A convenient and rapid navigation by the use
of the menu items is guaranteed by the graphical operator interface of the
Satellite Indicator PeakTech PKT 9015. An easy new installation of a satellite
system is guaranteed by automatic satellite search, location depended
orientation help and graphical presentation of signal strength as well as signal
quality. The DVB-S2 standard ensures that the Satellite Indicator detects also
high-resolution HD channels and even live TV image in modern 16:9 format can
display with sound with sound via built-in MPEG-4 decoder. In the
trouble-shooting and maintenance of available systems helps the spectrum
analyzer and the presentation of the signal quality, signal strength, bit error
rate and the modulation error rate. As special assistance for repairs the
Satellite Indicator PeakTech PKT 9015 has a constellation diagram for
presentation the modulated signal. If there are any questions about this
Satellite Indicator PeakTech PKT 9015, please have a look at the
technical specification below or call: |
|
|
|
|
|
|
|
|
-
DVB-S2 standard |
-
USB interface |
|
Technical Specifications |
|
|
Standard |
DVB-S / DVB-S2 |
|
Frequency range |
950 ... 2150 MHz |
|
Level range |
40 ... 80 dBµV / -65 ... +25 dBm |
|
LNB voltage |
13 / 18 V, 350 mA, 22 KHz |
|
Modulation type |
QPSK, 8PSK |
|
Video decoding |
MPEG 2/4 |
|
Dimensions |
120 x 210 x 45 mm |
|
Weight |
500 g |
|
Delivery content |
|
|
1x Satellite Indicator PeakTech PKT 9015, 1 x carrying case, 1 x holster, 1 x 230 V adapter, 1 x 12 V car charger, 1 x AV cable connection, 1 x F-connector, 1 x Software, 1 x user manual |
|
|
|
|
