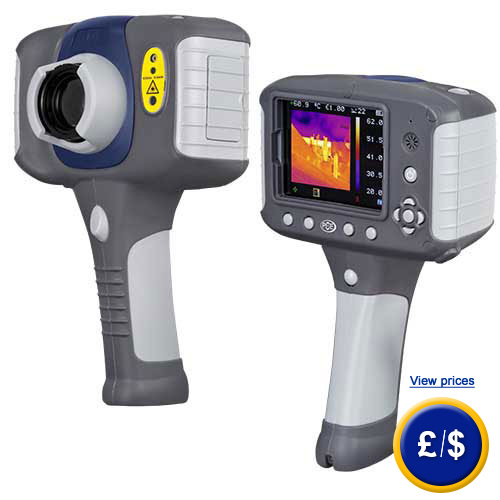

Thermo Graphic Camera PCE-TC 5
Thermo graphic camera for many different applications / dual vision / 320 x 240 pixels / storage of pictures as BMP file / stored pictures can be prepared in camera / installed voice recorder / 4 moving measuring points

Thermo graphic camera PCE-TC 5 is an essential measuring instrument for every energy consultant. In times of many vacancies and continuously increasing energy costs thermo graphic pictures taken with thermo graphic camera PCE-TC 5 can help to improve living standard and decrease additional costs. This thermo graphic camera offers special function like, for instance, thermo graphic and digital camera in one (dual vision), up to 4 temperature measuring points with adjustable emissivity and temperature difference of 2 points. Thereby, advantages like easy handling, long battery lifetime, extensive delivery content and an affordable price have been retained. Use of thermo graphic camera will be recommended if temperature difference between indoor and outdoor is very high, for instance in winter. Therefore, heat and cold bridges can be easily made visible. Various false colour presentations will be used by thermo graphic camera for this. Every temperature gets a colour; the warmest areas will be white and the coldest blue. Therefore, you can recognize temperature distribution of building on the display of thermo graphic camera at a glance. Thereby, it has to be noted that the estimating building areas are not warmed up through sun light. Therefore, we recommend to use the thermo graphic camera in the morning or evening when the sun is not shining that much. Laser pointer of thermo graphic camera allows an accurate location of measurement area. Recordings will be stored directly on the micro SD card as BMP file. You can see results right on-site and also you can evaluate them instantly (all picture stored in camera can be shown on camera display in a picture gallery) or you can evaluate them afterwards on a PC with software. Additionally, an installed voice recorder offers the opportunity to record comments for every picture taken. An overview of all thermal cameras can be found here: thermo graphic cameras. If there are any questions about the thermo graphic camera PCE-TC 5 have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you in all inspection cameras and all products in the field of measuring instruments, regulation and control and scales.

- 30 cm minimal focus distance
- Temperature difference between 2 points can be
  shown on thermo graphic camera
- Different languages available directly on camera
- Warmest and coldest point can be shown on
  display (hot and cold spot)
- Storage of pictures with time and date (BMP
  file)
- Thermo graphic camera with picture-in-picture
  function
- Image overlay of 0 … 100 % adjustable
- Stored pictures can be seen and evaluated on
  camera

- Temperature area -10 … +250 °C
- Field of view 21.4° x 16°
- 320 x 240 measurement points
- Spectral area 8 … 14 µm
- Laser pointer for better targeting
- Operating time with thermo graphic camera with charged battery up to 5 h
- High thermic sensitivity of 80 mK (0.08 °C)
- Up to 1000 images storable on micro SD card
- 4 adjustable temperature measuring cursor
- Every cursor has its own emissivity
- Integrated voice recorder for recordings of
  comments for every pictures

Connections of thermo graphic camera

Here you can see connections and slots of thermo graphic camera PCE-TC 5:
-ear phone connection
-USB connections
-connection for adapter
-slot for micro SD card

Technical specification of Thermo Graphic Camera PCE-TC 5

Temperature area

-10 … +250 °C

Measurement points / resolution

320 x 240 pixels (76,800 points)

Accuracy

± 2 °C or ± 2 % between -15 and +45 °C (higher value is valid)

Display resolution

192 x 192 pixels

Field of vision (FOV)

21.4° x 16 °

Measurement distance

30 cm until infinite

Thermic sensitivity

Image refresh rate

8 Hz

Spectral range

8 … 14 µm

Emissivity

0.1 … 1.0 (adjustable in 0.01 steps))

Image storage

micro SD card integrated in camera (up to 1000 images as BMP file)

Display

3.5” colour LC display, background lighted
with 8 adjustable colour scales
dissolve of heat and original image
(picture-in-picture)

Temperature display

°C and °F

Laser pointer

class II

Operating temperature

-15 … +50 °C

Storage temperature

-20 … +70 °C

Humidity

10 … 90 %, non-condensing

Power source

lithium ion rechargeable

Operating time

up to 5 h

Protection class

IP 54

Casing

plastic

Weight

800g

Dimensions

130 x 95 x 220

Examples of use of Thermo Graphic Camera PCE-TC 5

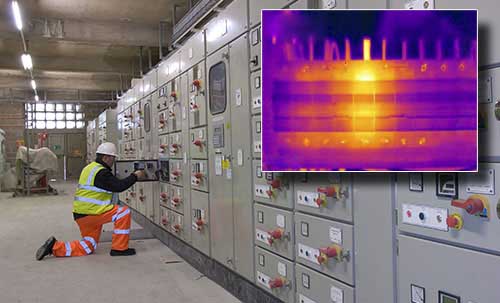

Thermo graphic camera PCE-TC 5 inspecting a cabinet.

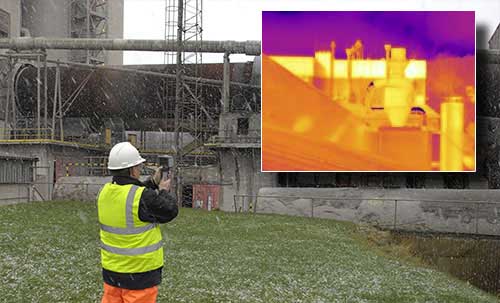

Thermo graphic camera PCE-TC 5 inspecting industrial plants.

Here you can see some picture taken with Thermo Graphic Camera PCE-TC 5

Delivery content
1x thermo graphic camera PCE-TC 5
1x lithium ion rechargeable
1x power adapter
1x transportation case
1x micro SD card
1x USB cable
1x software
1x user’s manual
