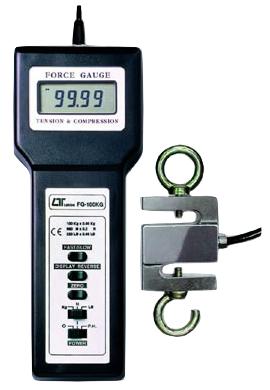

Digital Force Gauge of FG-100K (0 to 981 N) with external load cell at 2 m cable
The microprocessor controlled force gauge measures compression and tension forces. Therefore the force gauge uses an external load cell at 2 m cable. This load cell can be used with or without the hooks (on both sides). The force gauge is mainly used in industrial sector, research & development and various educational force measurement applications. So the gauge is valuable in product development, packaging testing, transportation testing.
- lightweight - robust housing - provides fast and accurate force measure- ments - microprocessor provides 0.5 % accuracy - zero/tare control - peak readings/peak hold - high resolution portable device provides readings of tension (pull) or compression (push) in 1 g increments - large 5 digit LCD display - battery or optional AC operated (turns if push or pull measure- ment)
Technical specifications:
Force gauge model	FG-100K
Range	0... 100 kg/0...981 N
Resolution	0.05 kg/0.2 N
Accuracy	± 0.5 % + 2 Digits/+- 5N
Display	5-digit; 10 mm LCD
Overload	50 % (max. up to 150 kg)
Power supply	6 x 1.5 V AA Mignon-Batteries or Mains Adaptor
Net weight	external load cell: 380 g force gauge: 450 g
Dimensions	external load cell: 130 x 51 x 18 mm force gauge: 227 x 83 x 39 mm
Delivery content: 1 x force gauge FG 100K, 1 x external load cell (at 2m cable), 1 x carrying case, user manual
Additional components (please order separately) - ISO calibration certificate - mains adaptor
