Pressure transducer with 8 channels Daq Pro
pressure transducer with 8 channels for NTC, thermo elements, Pt100, current, voltage, impulse, frequency

Universal Pressure transducer with 8 channels which fulfills almost all the requirements of the industrial sector. Thanks to its graphic display you will be able to read and analyze the measuring values in situ without a computer. Both its high resolution and its fast ADC make this pressure transducer an ideal device to be used in diverse fields:

- Quality assurance
- Control of machines and installations
- Achieving external documentations
- Documentation of the measurement results in control stations
- In heating, conditioning and ventilation sectors
- To help in fault detections
- Analysis of electrical installations
- Registration of environmental magnitudes
- Registration of conditions of food and pharmaceutical products storage
- For testing the quality of water
- For research and development

Measuring channels can be configured for different magnitudes such as voltage, current, temperature, frequency and impulses. Data can be determined and displayed without the help of a computer. The data is displayed in the graphic display as values, graphics and charts. The pressure transducer is handled by means of a keyboard. Data can be transferred to a PC as well as to other calculation programs such as MS Excel to be analyzed later.

- 8 measuring channels can be configurated for
  different magnitudes
- Input of: 0 ... 24 mA, 0 ... 5 mA,
  0 ... 5 mV, 0 ... 10 V, NTC, Pt100, thermo
  elements, impulses and frequency
- Output of potential-free alarm
- Graphic display with 64 x 128 pixels
- Memory: 512 KB
- Accuracy: 16 bits
- Software for Windows and carrying case are
  included

View or print user's manual of the pressure transducer
Daq Pro pressure transducer: user's manual

Pressure tansducer for input signals of 4 - 20 mA

Pressure transducer Daq Pro


Technical specifications
Measurement range / Resolution / Accuracy Current (Imp. 195 Ω): 0 ... 24 mA;
                                  0.47 µA;
                                  ± 0.5 %
Voltage:                      0 ... 50 mV o 0 ... 10 V;
                                  3 µV / 200 µV;
                                  ± 0.5 %
Frequency (0...5V):     20 ... 4,000 Hz
Impulse (0...5V):          0 ... 65,000
PT 100:                      -200 ... +400 °C;
                                  0.1 °C (7 mΩ);
                                 ± 0.5 % for elements
                                 (J, K, T type) according to the DIN;
                                  0.1°C; ± 0.5%
Measurement quota adjustable from 4,000 values / sec up to 1 value / h
Data memory 512,000 measurement values
Interface USB
Software and data cable in the delivery
Connection / Cable / Sensors terminal strip
Display graphic LCD display of 64 x 128
Power by means of an 7.2 V internal accumulator or via the mains
Dimensions 182 x 100 x 28 mm
Weight 450 g
Operating conditions 0 ... + 50 °C / 0 ... 90 % H.r.

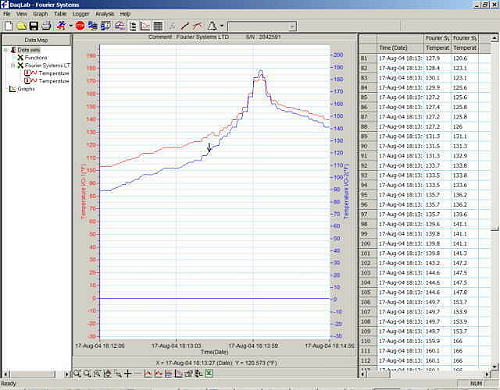

Software


Menu of the Pressure transducer DaqPro..

Software of the pressure transducer daqpro


Delivery contents
1 x Pressure transducer Daq Pro
1 x Rechargeable internal accumulator
1 x Accumulator chargers, compatible software
1 x Data cable for the PC (USB connection)
1 x Standard calibration with a calibration
      certificate included
1 x User's manual and a plastic carrying case
Delivery contents.

Optional components
 - ISO calibration certificate
for companies that wish to include this device in their set of internal testing tools or for annual recalibrations. The ISO certificate includes a laboratory calibration and a control document with all the measurement values. The ISO calibration certificate can be done in voltage (AC / DC) or in current (AC / DC).

Calibration certificate of the pressure transducer.
- Amp clamp adaptor
  Adaptor for indirect measurement of current up to
 1000A without interrupting the cable.
  - Range: 200 / 1,000A DC / AC
  - Accuracy: ±1.5 / 2%
  - A DC zero reset
  Dimensions: 190 x 64 x 33mm
  Maximum diameter of cable: 33.5mm
  - Power: 9V battery
Amp clamp adaptor
- Revolution adaptor
  Adaptor with revolutions sensor and 1m cable.
  For optical measurement of revolution between
 100 and 20,000 RPM in two ranges.
  - 0.1mV DC / 1 RPM   (range 1)
  - 0.1mV DC / 10 RPM (range 2)
  Dimensions: 190 x 73 x 37
Revolution adaptor.
- Pressure adaptor
  Adaptor with pressure sensor and 1m cable.
  For measuring absolute pressure between 3.5 ....
  3500 kPa.
  - Accuracy: ±1 % (up to 1,700 kPa); ±2 %  (up to
  2400 kPa) y ± 5 % (up to 3,500 kPa)
  - Resolution: 0.1/ 1 kPa
  - Dimensions:  100 x 50 x 25 mm; 1/4" Sensor .
  - Power: 9V battery
Pressure adaptor.
- Humidity adaptor
  Adaptor with humidity sensor in a handle and
  with 1m cable.
  - Range: 10 to 95% r.h.
  - Accuracy: ±3% r.h.
  - Resolution: 0.1% r.h.
  - Dimensions: 100 x 50 x 25mm
  - Power: 9V battery
Humidity adaptor.
- Light adaptor
  Adaptor with light sensor and 1m cable.
  - Three rages: 0 to 2,000 / 0 to 20,000 and 0 to
  50,000 lux
  - Accuracy: ±5%
  - Resolution: 1, 10, 100 lux
  - Dimensions: 100 x 50 x 25mm
  - Power: 9V battery
Light adaptor.
- Air velocity adaptor
  Adaptor with an air velocity sensor and 1m cable.
  - Range: 0.2 to 30 m/s;
  - Accuracy: ±2%
  - Resolution: 0.1 (m/s; km/h; knots)
  Dimensions: 100 x 50 x 25mm
  - Power: 9V battery
Air velocity adaptor.
- Sound adaptor
  Adaptor with sound sensor and 1m cable.
  A-weighting; can be externally calibrated (PCE-
  SC 41 calibrator)
  - Ranges: 30 to 130dB (in three ranges)
  - Accuracy: ±1.5dB (IEC 651 class II)
  Dimensions: 107 x 53 x 29mm
  - Power: 9V battery
Sound adaptor.
- EMF adaptor
  Adaptor with EMF sensor and 1m cable.
  Range: 0 to 20 microTesla / 200 milliGauss
  Accuracy: ±4%
  Resolution: 0.1 µTesla / 1 milliGauss
  Bandwidth: 30 to 300 Hz
  Dimensions: 100 x 50 x 25mm
  Power: 9V battery
EMF adaptor.
Technical information of the pressure transducer Daq-pro return to homepage
