Pyrometer MX 2 / 2CF and MX 4 / 4CF / 4+ |
||||
| This handheld pyrometer takes non contact temperature measurement into the future. Designed for ease-of-use and featuring new laser technology, the pyrometer MX is the professional's tool of choice.

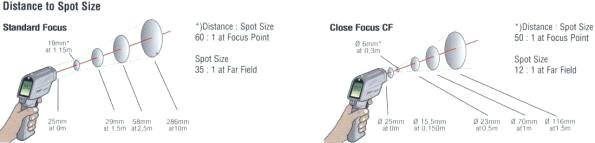

The MX measures a temperature range of -30...+900°C and features a unique 16-point laser sighting circle with a center aiming point that defines the area you are measuring. For special tasks all units are also available as sub zero models with a temperature range of -50...+500°C. The graphical display automatically charts the last ten temperature points using maximum and minimum values to establish the range. The MX2 is the basic model. Just point, shoot, and read. The MX4 is the high-performance model that accepts K & J thermocouples, thermistor (NTC), power input, and allows for data output. A useful table of 30 preset material emissivity listings is easily accessed. Simply scroll to locate the correct material. Both the MX2 and the MX4 are available with standard or close focus (6mm spot size at 300mm distance - see picture). Choose the pyrometer that millions of professionals use worldwide. |
||||
|
- in electrical panels - circuit brakers - generators and gearboxes Monitor: - supply and return registers - air stratification - duct leakage
- of petrol and diesel engine cylinders - railroad axles - bearings |
|
|||
|
|
||||
| technical data | ||||
| range: | -30...900°C (-50...+500°C. Sub Zero Model)) | |||
| accuracy: @23°C (73°F) ambient operating temperature standard model sub zero model |
1% or ±1°C (±2F), whichever is greater | |||
| 100...900°C: 1%; <100°C: ±1°C; <0°C: ±2°C | ||||
| -30...-5°C: ±1.5%; <-30°C: ±2°C | ||||
| repeatability: | ±0.5% or <±1°C whichever is greater | |||
| response time: | < 250ms (95% of reading) | |||
| spectral response: | 0...14µm | |||
| display resolution: | 0.1°C | |||
| ambient operating range: | 0...50°C | |||
| relative humidity: | 10...95%rH at 30°C, non condensing | |||
| storage temperature: | -20...+50°C | |||
| power: | 2 x 1.5 batteries, type R& (AA) | |||
| dimensions: | 200 x 170 x 50mm | |||
| weight: | 480g | |||
| features | ||||
| adjustable emmissivity: | 0.3...1.00 | |||
| laser sighting: | 16 point circular | |||
| MX 2 / MX 2CF |
MX 4 / MX 4CF |
MX 4+ | ||
| max and min temperature: | yes | yes | yes | |
| dif and avg. temperature: | no | yes | yes | |
| audible / visible lo-alarm: | no | yes | yes | |
| audible / visible hi-alarm: | yes | yes | yes | |
| on-board emissivity table: | no | yes | yes | |
| graphical display: | yes | yes | yes | |
| internal data logger (100 locations): | no | yes | yes | |
| data output RS-232 or 1mV per °C: | no | yes | yes | |
| Windows-compatible software: | no | no | yes | |
| Power supply (230V AC): | no | no | yes | |
| RS-232 data interface cable: | no | no | yes | |
| k-type thermocouple probe: | no | no | yes | |
| optional - k-type temperature probe - NIST traceable calibration certificate |
||||
| delivery (models MX2, MX2CF, MX4, MX4CF) 1 x Pyrometer, 1 x battery, carrying case and user manual |
||||
| MX 4+ delivery: Pyrometer MX 4, windows-based data graphing software, thermocouple probe, RS-232 data interface cable and plug-in power supply (230V DC) |
||||
|
Software: remote control for MX 4, data management, allows for data output for other windows applications, individual adjustments for special applications, pre-adjustments for the printer output |
||||
 |
 |
|||
|
