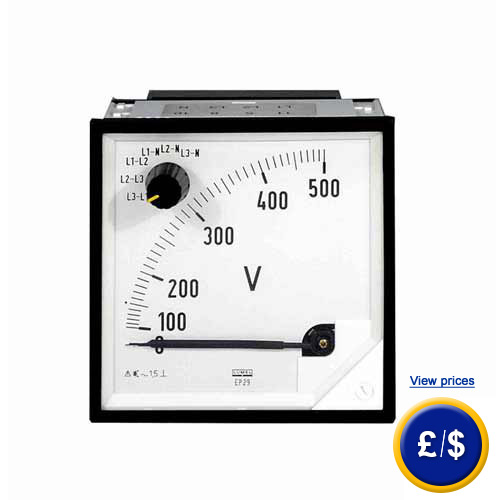

Analogue Voltmeter PCE-EP 29
Analogue voltmeter with phase change over / 96 x 96 mm /
simple installation / different installation angles

The analogue voltmeter PCE-EP 29 is designed to measure simple three-phase-voltages. This analogue voltmeter features an installation in control panels. The measurements of the analogue voltmeter are 96 x 96 mm, so the indicated values are very well readable. The analogue voltmeter can be configured and customized for various measuring and indicating ranges. The analogue voltmeter PCE-EP 29 is designed for alternating currents and can measure up to 500 V directly without the need of a transformer (phase-to-phase). The analogue voltmeter is designed in CAT III and can be applied for many monitoring tasks of voltages in system controlling. The overload protection of the analogue voltmeter covers 100 % of the chosen scale range. As a special highlight the analogue voltmeter features a phase change over, so that several phases can be monitored with only one analogue voltmeter. If there are any questions about this analogue voltmeter PCE-EP 29 , please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703.. Our engineers and technicians will gladly advise you regarding the ammeters or any other products in terms of regulation and control, or scales and balances of PCE Instruments.

- Analogue voltmeter with change over
- 96 x 96 mm
- Panel installation

- Long life time
- Up to 500 V phase-to-phase measurement
- Individually configurable

General Technical Specifications of the Analogue Voltmeter PCE-EP 29

Measuring range (for immediate voltage measurement)

500 V AC (phase to phase)
300 V (phase to N)

Measuring range (for measurement by transformer)

x / 100 V
x / 110 V

Accuracy class

1.5

Frequency of measuring signal

45 ... 65 Hz

Maximum operating voltage (P-N)

600 V

Measurement category

CAT III

Pollution grade

2

Overload

100 % of chosen measuring range

Front panel size

92 x 92 mm

Overall size

96 x 96 x 45 mm

Scale length

95 mm

Weight

290 g

Electrical connection

screw clamps

IP Code

IP 50

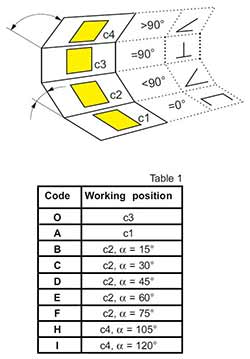

Installation Angles

Delivery content of the Analogue Voltmeter PCE-EP 29

1 x analogue voltmeter PCE-EP 29, 2 x montage screws, 1 x instruction manual
