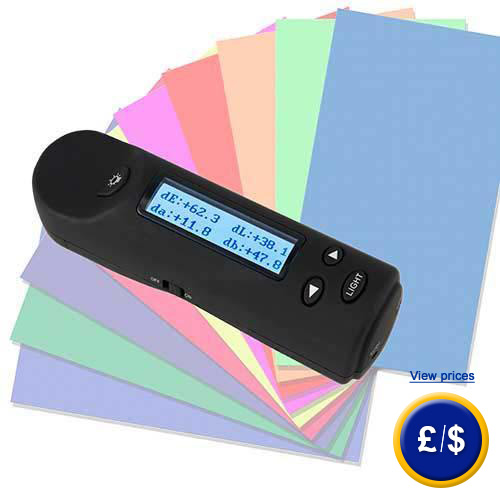

Colour Meter CIELab PCE-TCD 100
Measures colour differences according to CIELab / measures the colour area of LAB and LCH / Easy-reading LCD screen with back light

The colour meter PCE-TCD 100 can measure colour differences according to the standard of the colour area. This colour meter is easy to use and determines the Lab value difference between two colour measurements. The colour meter CIELab PCE-TCD 100 also uses, apart from Lab colour values , LCH values. After each colour measurement, it determines the values by means of calculation. The measurement of colour difference can be carried out on any smooth and flat surface. The measurement of colour differences is necessary as long as different samples of materials are being compared to each other. It is ideal to use when controlling the entry material or in the process of manufacturing paint in lacquer workshops. With the colour meter CIELab, the analysis of colour is carried out in a simple way, by simply pressing a button, the user can visualise on screen all the information regarding the colour. The meter allows you to change the measuring method of colour difference values and LAB absolute color values. Measuring colour is carried out using a silicon diode. The light source is an energy saving LED. The colour meter CIELab PCE-TCD has an acoustic signal to warn when the battery level is low, and therefore does not guarantee a precise measurement. If you have any questions regarding the colour meter please consult the technical specifications below or contact us on +44 (0)2380 987030 . Our technicians and engineers will happily advise you on this color meter and on any other product in our regulation and control systems, meters or scales.

Here you will find an overview of all our Colour Meters.

PCE-TCD 100 Colour Meter

Measurement range

L: 0 ... 100
a: -128 ... 127
b: -128 ... 127

Measurement time

approx. 3 seconds
