Forklift Scale LTF P series (
class M II/III)
Calibratable
forklift scale with integrated scaling system for forklift trucks / weighing
range up to 5,000 kg / resolution above 1 kg / compatible with DIN 15173 - FEM
Carriage plates / two very well readible displays / simple menu navigation /
easy and quick installation
|

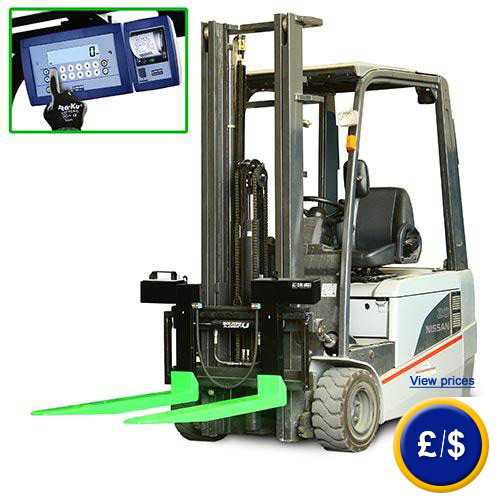

The
forklift scale consists of a pair of forks with an integrated scale weighing up
to 5,000 kg and a resolution above 1 kg for forklift trucks. The forks of a
forklift truck can be replaced by that forklift scale of the LTF P series. The
forklift scale features two displays and four shear beam load cells. One of the
LCD displays is placed on one of the forks while the other one can be installed
inside the driver's cabinet, in order to facilitate the weighing procedure of
heavy good. The forklift scale can be installed quickly and easily, and is
reliable and solid (IP65). The tabular of the forklift scale is water-prove and
supports the following functions: zeropoint, half-automatic tare- function,
manual taring, print and / or data transfer, key for menu navigation, and
ON-/OFF- button. Additonally the scale features the HOLD- and PEAK- function.
The forklift scale is either run by battery, by connecting it to a socket or by
the engine battery of the forklift truck itself. The forklift scale is
compatible with forklifts of DIN 15173-FEM carriage plates of IIA or IIIA
category. The forklift scale can be also ordered as a calibratable CE-M version.
If
there are any questions about this
forklift scale LTF P series, please have a look at the technical specification
below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703.. Our engineers and
technicians will gladly advise you regarding the forklift
scales
or any
other products in terms of regulation
and control, or scales
and balances of PCE
Instruments.
|
|
|
-
Calibratable, optional calibration
- Up to 5,000 kg
- Resolution down to 1 kg
- Compatible with DIN 15173 carriage
|
-
Clear LCD display
- Additional radio-display
- Simple menu navigation
- Easy and quick to install
|
General
Technical Specifications of the Forklift Scale PCE-LTF P
|
Model
|
LTF1125AR
|
LTF1125ARM
|
LTF1150AR
|
LTF1150ARM
|
Scaling
range [kg]
|
500
/ 1000 / 2500
|
1000
/ 2500
|
1000
/ 2500 / 5000
|
2500
/ 5000
|
Resolution
|
1
/ 2 / 5 kg
|
2
/ 5 kg
|
2
/ 5 / 10 kg
|
5
/ 10 kg
|
Carriage
DIN 15173
|
FEM
Class IIA
|
FEM
Class IIA
|
FEM
Class IIIA
|
FEM
Class IIIA
|
|
Accuracy
|
±
0.2 % of weighing range
|
Max.
overload
|
200
% nominal load
|
Max.
horizontal angle
|
±
2° for mentioned accuracy
|
Switch-off
function
|
programmable
|
Weighing
forks
|
steel
|
Protection
category
|
IP65
|
Display
|
LC
Display, background lights
|
Weight
|
75
kg (LTF25), 90 kg (LTF50)C
|
Functions
|
Netto-
/ Brutto, Weight summation, control ±, percentage of weighing, piece count,
HOLD, Peak value
|
|
The
device can be configured at the display installed in the driver's cabinet for
simpler weighing tasks. The power source can be either a separate battery, or
the forklift truck's engine battery. The optional printer can be mounted to
the display inside the driver's cabinet.
Delivery
Content of forklift scale PCE-LTF P
1 x forklift scale
2 x display
(1 x integrated, 1 x radio display)
1 x adapter
1 x instruction manual
|
|
Optional
Equipment Forklift Scale PCE-LTF P
Calibration M II/III
A calibration is a test of the accuracy of the device by an authority.
Only scales that have been calibrated before their firs use, can be
re-calibrated later as well. The first calibration cannot be performed
afterwards. A calibration is valid for two years.
|
|
|
|
