Laser Distance Meter Leica Disto DXT
Laser distance meter for easy, comfortable and precise measurements to 70 m / multiple functions / (IP65) protection against water and dust / recall function of the last 10 measurements

The laser distance meter, with the size of only 122 x 55 x 28 mm, is no bigger than a cell phone, therefore it is very convenient to carry. The laser distance meter is designed for construction work. The case and the keyboard of the laser distance meter have special protection against water and dust (IP65). Therefore, you can clean the laser distance meter under running water. Sensitive measuring elements are protected by a reinforced rubber component. The laser distance meter is very solid and resists drop tests from a height of 2 meters. Fast and accurate measurements with a range up to 70 m make this laser distance meter superior to any other method of measurement, such as a folding device, a measure tape or an ultrasonic distance meter. A keyboard with shortcut buttons makes work much easier. The continuous measurement mode allows continuous measurements to accurately determine the height and diagonals in rooms. By pressing a button you can obtain additional information such as surfaces or angles. You will find an overview of the PCE distance meter instruments here.

- Specifically designed for harsh environment,       such as construction works

- IP 65 protection class  (protected against dust    and water), sealed keyboard and rubber gasket,   DXT can even be put under running water

- Shock resistant casing and rubber protection      from drops even from a height of 2 m

- The multifunctional piece allows accurate           measurement from any position, including          corners and edges

- Multiple functions: continuous measurement,      addition/subtraction, area and volume                measurements, backlight, memory of 10            values, Pythagorean, maximum and minimum     timer

            View or print the user manual for
                   the laser distance meter


Technical specifications

Measurement range

0.05 ... 70 m

Accuracy

±1.5 mm

Laser

class 2

Maximum and minimum measurement

yes

Continuous measurement

yes

Addition/substraction

yes

Service and volume measurement

yes

Indirect measurement through Pythagoras function

yes

Recall of last data

10 values

Automatic trigger

yes

Display with automatic backlight

yes

Measurements taken by one set of batteries

up to 5000

Final multifunctional piece with automatic detection

yes

Metal thread for tripod

yes

Power supply

2 x  1.5 V AAA batteries

Dimensions

122 x 55 x 28 mm

Weight with batteries

159 g

Protection

IP65 water and dust resistant

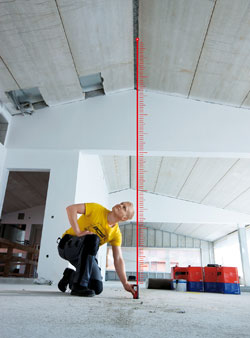

Uses of laser distance meter Leica Disto DXT

Delivery content:
1 x  Leica Disto DXT laser distance meter, 1 x carrying case, 1 x hand lead, 2 x  1.5 V AAA batteries, user manual

Optional
Laser distance meter safety glasses: To better detect the laser spot emitted by the laser distance meter in bright light.

Blank check to increase the precision of the laser distance meter when measuring at long distances.

Laboratory ISO Calibration with certificate. The ISO certification according to ISO 9000 norm  consists of a laboratory calibration and a certificate. The name of the company or customer will be included in the document. Calibration can be requested with the first order, or you can send the instrument for recalibration periodically, e.g. annually.
