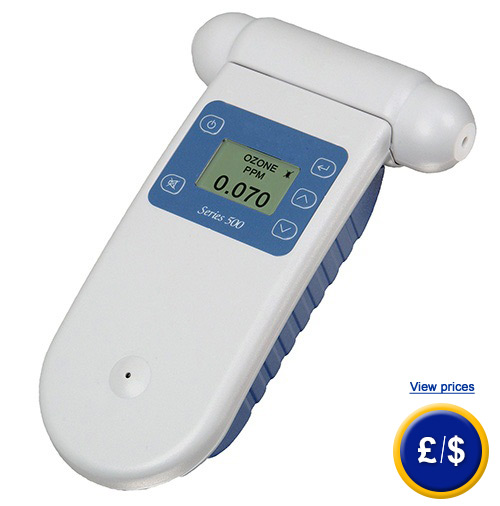

Ozone Tester series AQ
portable ozone testers available in different versions /
with measurement unit selection in ppm or mg/m³ / battery operated /
different sensor heads available

The Ozone Tester is a very precise meter for the measurement of ozone concentrations in the air. The Ozone Tester can be equipped with four different heads that vary in their measurement range. The fields of application for the Aeroqual Ozone Meter in the industrial sector are the manufacture of paper, textile or lubricants that use ozone to whiten oils, fats, wax, paper, synthetic, cellulous or textile fibers.

Another field of application for the Ozone Tester is in cleaning, disinfection and sterilisation of swimming pools, water treatment facilities or after forest fires. With a head for measurements of up to 0.150 ppm, you can measure ozone concentrations that are dangerous for human beings. Thanks to the GSS technology of the sensors, the Ozone Tester has not only a high precision but the sensors also have a long life-span.

The unique possibility to refresh the sensors makes their maintenance more economic than the maintenace of other types of sensors. This model has an analogical interface with an output of 0… 5 V that registers the data in the internal memory or transfers them to a PC through a port RS-232. Thanks to the simple handling, you can set up the alarm limit values for acoustic or visual warnings in a short time. In addition to the measurement values in ppm or mg/m3 on the screen, you can also see the limits for the high and low alarms.

If you should have more questions regarding the ozone tester, please read the following technical data, use our contact form or call us: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you regarding the ozone testers or any other products in the field of Control Systems, Laboratory Equipment, Measuring Instruments or Scales and Balances of PCE Instruments Ltd.

- High precision and functionality
- Easy handling and simple maintenance
- Fast response time
- Remote Control
- Possibility of changing the heads
- LCD
- Power supply by battery

- Sensor calibration function
- Min., max., average values
- Analog output (series 300 and 500)
- Digital output (series 500)
- Datalogger (series 500)
- T/H optional sensors
- Alarm function (series 300 and 500)

General technical specifications of the ozone tester (all models)

Power supply

12 V DC

Battery

Li-Polymer 12 V DC / 2700 mAh

Charger

12,6 V 2 A

Ladespannung

12,6 V

Charging time

2 ... 3 h

Life cycle

>500 recharges

Casing

PC and ABS / IP20 and NEMA 1

Dimensions

195 x 122 x 54 mm

Weight

<460 g (including battery)

Norms

EN 50082-1: 1997
EN 50081-1: 1992
CE

Technical specification of the ozone tester (Model 200)

Measurement units

ppm or mg/m³

Functions

Min., max., mean, mean of in 15 minutes

Sensor head

removable / exchangeable

Status indication on the display

battery, sensor, standby

Calibration

zero calibration

Technical specification of the ozone tester (Model 300)

like model 200 and additionally

Alarm

High alarm, low alarm and no alarm

Alarm output

Transistor, 150 mA max
Low alarm, high alarm and control

Analog output

0 ... 5 V

Location ID

Saving the measurement location

Technical specification of the ozone tester (Model 500)

like model 500 and additionally

Digital output

RS-232 with USB transducer

Data logger

8188 values

Data transfer

Software and data cable included

Technical data for the different sensor heads of the ozone tester can be found at the lower section of this page. If there are any questions or uncertainties concerning the sensor heads, please use the opportunity to contact us.

Sensors of the Ozone Tester series AQ checking the ozone.
Different sensor heads for the ozone tester.

Ozone Tester series AQ 200.

Ozone Tester series AQ 300.

Scope of delivery for the ozone tester

1 x ozone tester AQ (AQ 200 oder AQ 300 oder AQ 500), 1 x battery 12 V, 1 x power supply unit,
1 x user manual, 1 x software (AQ 500 only), 1 x USB data cable (AQ 500 only)
Please note: the scope of delivery does not contain sensor heads! Please order separately!
There are also kits available which can be found in the lower section of this site!

Here you can find the different sensor heads for the ozone tester:
Gas Code	Code	Measurement area (ppm)	Minimum detection (ppm)	accuracy of factory calibration	Resolution (ppm)
GSS sensors (Gas Sensitive Semiconductor):
Ammonia (NH3)	NH	0 ... 1000	2	<±5 ppm + 15 %	1
Carbon Monoxide (CO)	CO	0 ... 1000	1	<±2 ppm +15 %	1
Hydrogen (H2)	HA	0 ... 5000	5	<±10 ppm +10 %	1
Methane (CH4)	MT	0 ... 10000	10	<±20 ppm 15 %	1
NMHC	VN	0 ... 25	0.1	<±0.1 ppm +10 %	0,1
Ozone (O3)	OZS	0 ... 0.05	0.001	<±0.002 ppm	0.001
Ozone (O3)	OZU / OZ	0 ... 0.15	0.001	<±0.005 ppm	0.001
Ozone (O3)	OZL / LZ	0 ... 0.5	0.001	<±0.008 ppm (0 ... 0.1) <±10 % (0.1 ... 0.5)	0.001
Ozone (O3)	OZG / GZ	0 ... 10	0.02	<±0.1 ppm +15 %	0.01
Percloroethylene (C2Cl4)	PE	0 ... 200	1	<±5 ppm (0 ... 50) <±10 % (50 ... 200)	1
VOC	VM	0 ... 25	0.1	<±0.1 ppm +10 %	0.1
VOC	VP	0 ... 500	1	<±5 ppm 10 %	1
GSE sensors (Gas Sensitive Electrochemical):
Ammonia (NH3)	ENG	0 ... 100	0.2	<±0.5 ppm +10 %	0,1
Carbon monoxide (CO)	ECM	0 ... 25	0.05	<±0.5 ppm (0 ... 5) <±10 % (5 ... 25)	0,1
Carbon monoxide (CO)	ECN	0 ... 100	0.2	<±1 ppm (0 ... 10) <±10 % (10 ... 100)	0.1
Clorine (Ci2)	ECL	0 ... 10	0.01	<±0.02 ppm +10 %	0.01
Formaldehyde (CH2O)	EF	0 ... 10	0.01	<±0.05 ppm (0 ... 0.5) <±10 % (0.5 ... 10)	0.01
Hydrogen sulfide (H2S)	EHS	0 ... 10	0.04	<±0.05 ppm (0 ... 0.5) <±10 % (0.5 ... 10)	0.01
Hydrogen sulfide (H2S)	EHT	0 ... 100	0.4	<±0.5 ppm (0 ... 5) <±10 % (5 ... 100)	0.1
Nitrogen dioxide (NO2)	ENW	0 ... 1	0.005	<±0.2 ppm (0 ... 0.2) <±10 % (0.2 ... 1)	0.001
Ozone (O3)	EOZ	0 ... 10	0.01	<±0.01 ppm +7,5 %	0.01
Sulfur dioxide (SO2)	ESO	0 ... 10	0.04	<±0.05 ppm (0 ... 0.5) <±10 % (0.5 ... 10)	0.01
Sulfur dioxide (SO2)	ESP	0 ... 100	0.4	<±0.5 ppm (0 ... 5) <±10 % (5 ... 100)	0.1
NDIR sensors (Non-dispersive Infra-Red):
Carbon dioxide (CO2)	CD	0 ... 2000	10	<±10 ppm +5 %	1
Carbon dioxide (CO2)	CE	0 ... 5000	20	<±20 ppm +5 %	1
PID sensors (Photo Ionization Detector):
VOC	PDL	0 ... 20	0.01	<±0.02 ppm +10 %	0,01
VOC	PDH	0 ... 2000	0.1	<±0.2 ppm +10 %	<1000: 0.1 >1000: 1

Additional accessories for the ozone tester

Sensor remote-kit for the ozone tester (AS R 10)

The R 10 kit of the ozone tester is used to measure gases in a surrounding area of up to 14 meters. It provides an IP41 and NEMA2 protected casing. In addition to that it is designed as a simple plug-and-play solution to make the device as user friendly as possible.

The R 10 kit of the ozone tester is used to measure gases in a surrounding area of up to 14 meters.

Remote kit of the ozone tester with the connector.

NEMA2 and IP41 protected casing of the ozone tester.

Carrying case for the ozone tester (AS R 40)

The carrying case R 40 protects the ozone tester from shocks and other vibrations. It also has some space for cables and other accessory.

Carrying case of the ozone tester.
