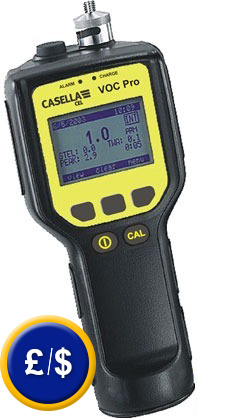

VOC PRO photoionization detector

Photoionization detector VOC Pro quick and reliable detection of volatile organic compounds (VOC) in the air and at work places, ATEX protection for explosive atmospheres, detection of odor sources, leak detection
The photoionization detector VOC Pro detects volatile organic compounds thanks to its tried and tested photoionization technology. The photoionization detector VOC Pro comes with a 10,6eV lamp for the ionization of chlorinated compounds. The UV lamp is very easy to clean and maintain. The photoionization detector VOC Pro has a sampling pump to allow for a quick measurement. The measuring results TWA, STEL and average values are displayed in its large LCD screen. Its wide detection range from 0.5 to 2,000 ppm makes this photoionization detector VOC pro the ideal instrument to be used for many diverse applications. The photoionization detector VOC Pro can be used within a wide range of temperature and humidity. Both the ergonomic design and its large keys make the photoionization detector VOC Pro very easy to use and you can carry the device even when protection gloves are being used. The photoionization detector has ATEX protection for the following dangerous areas: UL: Class 1, Division 1, Group A, B, C y D ATEX Eex ib IIC T4 II 2 G. If you don't find the photoionization detector you are looking for, please contact us and we will help you find the best solution to suit your needs. Just call UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703 and our technical staff will advise you regarding our measuring instruments.
- Fields of application of the photoionization detector VOC Pro: occupational risk prevention, ambient / air monitoring, search for toxic elements, fumigation of building materials, locating mould and spores, locating odor sources, leak detection, control works. - ATEX protection for the following dangerous areas: UL: Class 1, Division 1, Goup A, B, C y D ATEX Eex ib IIC T4 II 2 G - Wide measurement range 0,5 ... 2000 ppm - Easy-to-read display - Ergonomic desgn - Indication of average values, TWA and STEL View or print user's manual of the photoionization detector VOC Pro.
Memory
Measured values can be automatically (if the measurement rate has been set) or manually recorded. A measured value comprises date and time, max., min. and average values according to the measurement rate. The memory capacity is for 15,000 values. Stored values can be transferred to a PC by means of the RS-232 interface. The report can also be transferred to the Excel calculation program.
Three measurement modes for the photoionization detector VOC Pro:
- Logging Off: continuous readings for real-time measurements, i.e. control works - Tag Mode: data logger with identification (name or number). It is ideal for multiple measurements. . - Interval: Data logger in pre-established intervals and real time display of STEL, TWA and peak values.
Detectable compounds
- Aromatic elements: benzene, toluene, naphthalene - Non-saturated hydrocarbons: acetylene, ethylene 1,3 butadiene - Chlorinated hydrocarbon: vinyl chloride, chloroform, trichloroethylene, methylene chloride - Ketones: acetone, methyl ethyl ketone, methyl isobutyl ketone - Alcohols: methanol, ethanol, isopropanol, n-butanol - Organic fuels: gasoline and kerosene
Technical specifications
Dimensions	21 x 10 x 6.5 in cm
Weight	800 g
Detector	PID, 10.6 eV
Measurement range	0.5 - 2,000 ppm (resolution 0,1 ppm)
Accuracy	± 2 ppm or 10 % of the displayed value
Response time	t90 <3 seconds
Pump	approx. rate 350 ml/min
Memory	internal: 15,000 values with date and time
Alarm	acoustics and visual signal (95 dB) Alarm threshold for the current value (3), Dose value and cut-off value of 1/4 hour
Power supply	replaceable Ni-Ca operating time 12 hours with charger (220 V), charging time: 4 hours
Detection	more than 70 programmed compounds
Display	dot matrix (LCD) of 7 digits, enlighten
Protection	protection with calibration key/ alarm/ measuring values
Handling	5 keys: 3 soft keys, On/Off and calibration keys.
Interface	RS-232
Temperature	0 °C ... +40 °C
Humidity	0 - 100 % H.r., non-condensing
Ex standard	Europe: ATEX-94/9/EC II 2G EEx ib m IIC T4 USA: UL class I, Division 1, Groups
Delivery contents 1 x photoionization detector VOC Pro, 1 x 10,6 eV lamp, 1 x rechargeable accumulator , 1 x mains component, 1 x probe, 1 x user's manual.
Optional accessories -VOC Pro Field Kit with calibration gas: carrying case, calibration gas, gas regulater, VOC Pro COMM software, replaceable accumulator, printer and data cable. -VOC Pro Field Kit: carrying case, VOC Pro COMM software, replaceable accumulator, printer and data cable. - Calibration certification (p.e. annual, to meet the ISO standard)
