Volume Velocity Transducer
PTSXR
volume
velocity transducer for pressure, volume-, mass flow and velocity /
scaleable / 2 switch relays max. 230 VAC, 6 A / RS232
|
The

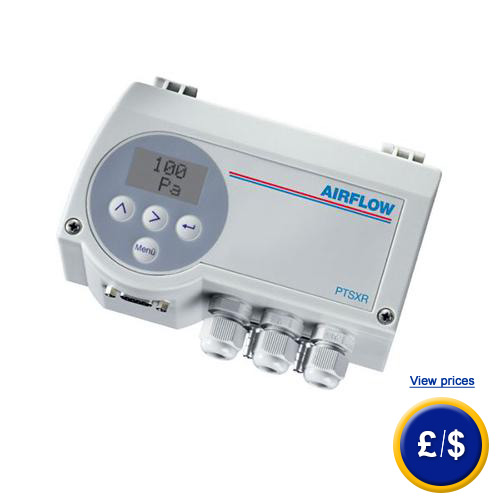

volume velocity transducer PTSXR is a pressure transducer with very high
technical standards and features the measurement of positive as well as negative
pressure, the volumetric flow rate, mass flow rate and the flow speed. The
volume velocity transducer is only designed for measurements in atmospheric air,
not for measurements of aggressive gasses. The microprocessor controlled volume
velocity transducer PTSXR is not only designed for measuring and display tasks,
it can also monitor various thresholds. In case one of these thresholds is
trespassed and one of the two relays is activated, an alarm is set off, alerting
every second (adjustable) until it is deactivated or the values are within
a range again. For the pressure scaling of the volume velocity transducer there
are two setpoints. Since these setpoints are selectable, even values like 0 V at
0 Pa, 10 V at -250 Pa can be realized. By setting up the scaling at the volume
velocity transducer, the accordant volume- or mass value can be accustomed as
well, so that a switch between volume and mass is possible even during
operation. The values can be set between 0.1 and 10000 m³ or kg. The volume
velocity transducer PTSXR features also an internal overpressure protection,
which protects the precision-pressure cell from destruction (Overload range:
200-times [max. 600 KPa]). Another important aspect is that the volume velocity
transducer features a RS232 interface to configure the parameters at a computer.
That individualized design and range of options qualify the volume velocity
transducer for a vast range of tasks, and an optimized use of the measuring
ranges and output signals for measurement, controlling or regulation. If there are any questions about this
volume velocity transducer PTSXR , please have a look at the technical specification
below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703.. Our engineers and
technicians will gladly advise you regarding the flow
transducers
or any
other products in terms of regulation
and control, or scales
and balances of PCE
Instruments.
|
|
|
-
2 switch realys
- IP code IP65
- Even for top hat rail mounting
- High overload protection (internal valve)
|
-
For measurements in atmospheric air
- RS232 interface (option)
- Measurement range scalable 10-100% MB
- No zero point drift
|
General
Technical Specifications of the Volume Velocity Transducer PTSXR
|
Measurement
range
|
100/250/500
Pa
1/2/4/10/20/40/100 kPA
scaling between 10…100 %
within measurement range
|
Accuracy
|
0.3
Pa + 0.5 fr. unit
measurement range ≤ 60 Pa
0.5 % fr. u. at measurement range > 60 Pa
|
Optional
accuracy
|
±
0.2 % from unit only ≥ 250 Pa
|
Output
signal
|
0
… +10 V (RL ≥ 2 k Ω) or
-5 … +5 V (RL ≥ 2 k Ω) or
0 … 20 mA (RL ≤ 500 Ω) or
4 … 20 mA (RL ≤ 500 Ω)
|
Contact
point (optional)
|
2
switch relays max. 230 V AC, 6 A
|
Interfaces
(optional)
|
RS-232:
9600 Baud, 8 databits, no parity, a stop bit
USB:
12 Mbps USB 2.0 Full- Speed
|
Power
Source
|
24
VDC
24 VAC
230 / 115 VAC
|
Amplitude
drift / temperature
|
0.03
% + 0.5 % fr. u.
|
Zero point
drift / temperature
|
±
0 % (cyclic zero point correction)
|
Overload
capacity
|
600
kPa at measurement ranges ≤ 2.5 kPa
200-times at measurement range ≤ 2.5 kPa
|
Max.
system pressure (furthermore on demand)
|
10
kPa at measurement range ≥ 10 kPa
at measurement range above 10 kPa
max. nominal pressure of sensor
|
Time
constant
|
25
ms ... 60 s (adjustbale)
|
Cable
connection
|
3
x M 16
|
Pressure
connections
|
for
pipe NW 6 mm
|
Capacity
input
|
approx.
5 VA
|
Measurement
medium
|
atmospheric
air, no aggressive gasses
|
Operation
temperature
|
+10
°C ... +50 °C
|
Storage
temperature
|
+10
°C ... +70 °C
|
Display
|
optional
|
IP
Code
|
IP
65
|
Tests
|
CE
|
Delivery content
of the Volume Velocity Transducer PTSXR
|
1
x Volume Velocity Transducer PTSXR
1 x instruction manual
|
|
|
