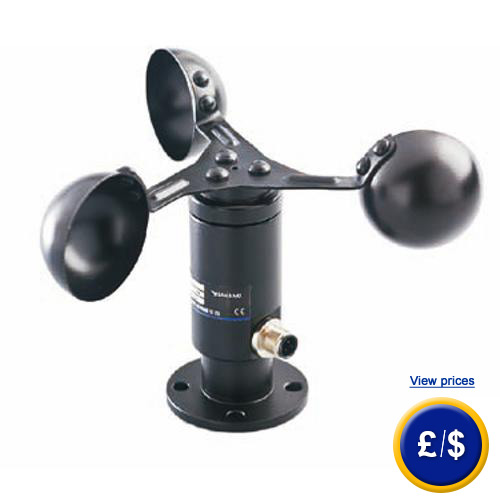

Wind Speed Sensor PCE-FST-200-201
Solid wind speed sensor for permanent installation / powder coated /
weather proof due to various kinds of sealing

Due to a simple montage the wind speed sensor can be connected to a large number of meters. The wind speed sensor starts its measurement with the slightest wind movement and shows those measuring values at real-time speed. Due to its design, the wind speed sensor withstands even roughest weather conditions. Since the wind speed sensor is made of a metal alloy, which resists any kind of oxidation, so that it prevents rust. Seals that are installed at particularly delicate spots protect the wind direction sensor from penetration of water and any other particles, such as fine dust. The wind speed sensor PCE-FST-200-201 series is a 3-cup anemometer, which registers even lowest wind speeds, even though they might be at less than 0.5 mps. There are two different versions of the wind speed sensor purchasable, one of which has a 4 ... 20 mA output, while the other one features a 0 ... 10 V DC output. If there are any questions about this wind speed sensor PCE-FST-200-201 , please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703.. Our engineers and technicians will gladly advise you regarding the air flow meters or any other products in terms of regulation and control, or scales and balances of PCE Instruments.

- metal alloys
- weather proof due to various seals
- simple mounting

- long lifetime
- output of analogue signal
- measurement starts at low wind speed

General Technical Specifications of the Wind Speed Sensor PCE-FST-200-201

Output Signal

4 ... 20 mA (PCE-FST-200-201-I)
0 ... 10 VDC (PCE-FST-200-201-U)

Operation voltage

12 ... 36 VDC

Measuring range

0.5 ... 50 m/s

Measurement starts at

≤ 0.5 m/s

Measurement accuracy

±0.5 m/s (<5 m/s)
±3 % from final scale value (≥5 m/s)

Operational Temperature Range

-20 ... +85 °C at ≤95 % r.H

Maximum wind speed

70 mps for a max. of 30 minutes

Electrical Connection

M12

Protection Class

IP65

Delivery content of the Wind Speed Sensor PCE-FST-200-201

1 x wind speed sensor PCE-FST-200-201-I
                       or
1 x wind speed sensor PCE-FST-200-201-U,
1 x Instruction Manual
