Measuring instrument PCE-N20U instrument with 2 alarm outputs / configuration through software / for normalized signals from 0-10 V / IP 65 in front / with sensor supply
|

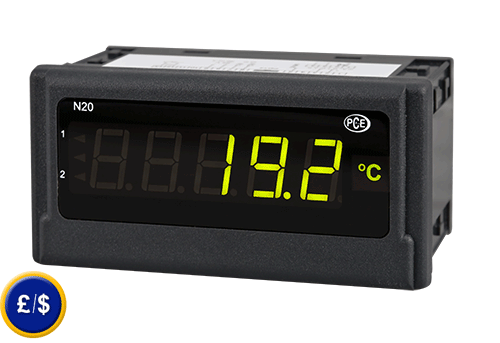

The measuring instrument PCE-N20U analyzes the normalized signal 0-10 V. As many sensors and transducers work with an analog output, the measuring instrument can be used in many sectors. The actual measurement value can be read in the 5-digit LED display of the measuring instrument. The screen of the measurement instrument displays in three different colors according to the value. This allows a rapid assessment of the reading. Two outputs allow you to send an alarm when limits are exceeded. The integrated 24 V power supply also allows direct connection of sensors and transducers. The measuring instrument is available in two versions, which differ in the power supply they use (230 V or 24 V). The configuration of the alarm values and the scale is done through software LPCon. Using the optional PCE-PD14 programming adaptor, you can make adjustments or read data from the meter. The software can store the settings made for later retrieval. The following link provides other instruments of measurement.
|
View or print user´s manual for the measuring instrument PCE-N20U
|
- Front panel with IP 65 protection
- For normalized signals 0-10 V
- Connection via screw terminal
|
- Screen display in three colors
- Sensor supply 24 V
- 5 -digit LED display
|
Technical specifications |
Input |
-1 ... 0 ... 10 ... 11 V |
Input resistance |
1 MΩ |
Accuracy |
±(0,2 % FS + 1 digit) |
Scale |
2 points |
Time for average value |
0,5 ... 20 s |
Outputs |
2 x open collector 30 V, 20 mA |
Sensor supply |
24 V, 30 mA |
Display |
5 digits LED of 7 segments, height 14 mm, 3 colors |
Indication range |
-19,999 ... 99,999 |
Temperature |
Operation: -10 ... +55 ºC Storage: -25 ... +85 ºC |
Max. relative humidity |
<95 % not condensed |
Dimensions |
96 x 48 x 64 mm |
Panel mounting dimensions |
92 x 45 mm (according to DIN) |
Power supply voltage PCE-N20U-1 PCE-N20U-2 |
85 ... 253 V AC/DC 20 ... 40 V AC/DC |
Power consumption |
<6 VA |
Type of protection |
Front: IP 65 |
Weight |
<250 g |
Mounting |
mounting clips with screws, connection via terminal blocks |
Case |
hard plastic |
|
|
The electrical connection of the measuring instrument is done through the hitch screws. In the case, you will find a connection map (similar to that seen in the right image). This ensures a quick and safe installation in situ. In the back of the case, there is also a programming interface adaptor (PCE-PD14).
|
Delivery contents
1 x measuring instrument PCE-N20U (1 o 2), hitch material, union, user's manual |
Versions of the measuring instrument PCE-N20U-1 PCE-N20U-2 |
Power supply 85 ... 253 V AC/DC Power supply 20 ... 40 V AC/DC |
Additional components -Programming adapter PCE-PD 14 To adjust the various parameters of the measuring instrument PCE-N20U, the programming adaptor PCE-PS 14 is required . Using the software included in the shipment , you can easily adjust the measuring instrument via the USB port.
|
|
|
Here you will find an overview of all the measuring instruments available at PCE Instruments. |
