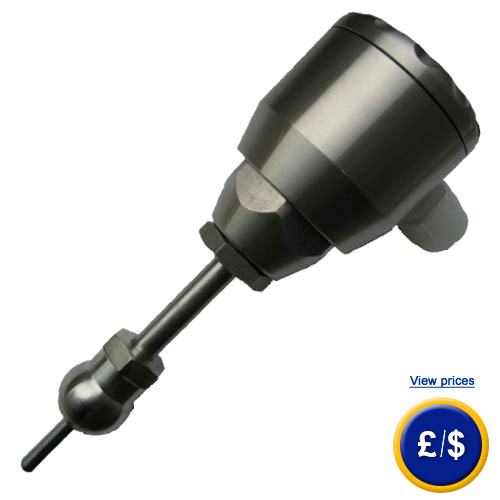

Sensor Pt100 WTR 140
Pt100 sensor for the food industry / stainless steel / 3 wire / ready to connect to processes

WTR Pt100 140 sensor  is very suitable for use in the food industry sector because the whole case is stainless steel. Pt100 sensor probe can be changed. Besides, it has a ceramic socket that can be replaced by the KMU 100 transducer . The measurement range of Pt100 sensor is from -50 to +400 º C and is therefore suitable for many applications, especially in the food industry sector. The Pt100 140 sensor  is completely isolated through the welded sleeve. The sleeve has a diameter of 25 mm. The probe, which is interchangeable, is 3-wire and belongs to the accuracy class A. Click on the link to see other sensors

Sensor Pt100 WTR 140 for the food sector

View or print the user's manual of the Pt100 WTR 140 sensor
View / print the user´s manual of the Pt100 WTR 140 sensor

-Measurement range: -50 ... +400 ºC
- Stainless steel
- Temperature measurements in pipes and containers
- Accuracy class  A

- Rounded welded sleeves
- Robust construction
- Completely isolated
- Possibility of connection to the  KMU 100 transducer

Technical specifications

Case

Connection: stainless steel
Protective frame: stainless steel 1.4571, 6 mm diameter

 Pt100 type

3-wire

Measurement range

-50 ... +200 ºC

Accuracy class

class A

Length in mm

50, 100, 160, 200, 250, 300

Delivery contents
1 x sensor Pt100 WTR 140, 1 x user´s manual

Optional accessories

Transducer KMU 100

KMU 100 Transducer
The KMU transducer is designed to detect  the temperature of Pt100 sensors and convert it into a standard signal. This transducer is characterized by its compact dimension and it allows integration with almost any sensor. The transducer provides the ability to connect sensors Pt100 of 2, 3 or 4 wires. When you connect a 2-wire sensor, the KMU 100 temperature transducer  has an automatic compensation of the ducts, which prevents the detection of inaccurate readings due to the resistance of the duct.

technical specifications for the Sensor Pt100 WTR 140.
