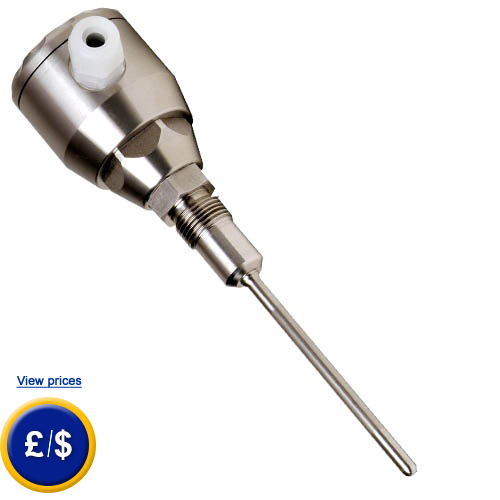

Pt100 WTR 350 Sensor
sensor for the food industry/ quick
response time / stainless steel head
/ Pt100 sensor fixed in protective
case / measuring range up to max.
200 º C
|
Pt100
WTR 350 sensor is very
suitable for the food industry and
it can be adapted by different
sleeves and connectors. The Pt100
WTR350 sensor head is all
stainless steel. Like any sensor
Pt100 WTR 3xx series, you can also
request this sensor with a narrower
WTR probe. The Pt100 Pt100 probe is
permanently installed in the
protective case. This in turn is
injected to the head. The WTR
350 sensor head is a plate for
electrical connection. You can
optionally set the KMU100 transducer
to the head . The length is
variable. The WTR Pt100 sensor
diameter is 6 mm. The Pt100 WTR 350
sensor can be used for any
measurement in foods as it has a
protection class IP 69K. Click here
to view other
sensors Pt100 |
View /
print the user's manual for the
Pt100 WTR 350 sensor
|
- Fixing
screw in the protective case
- Pt100 integrated directly in the
protecting case
- Pt100 3-wire class A |
- Possibility of reducing the fixing
screw to a 3 mm neck
- Suitable for the food industry
- Possibility of connection to
KMU 100 transducer
|
Technical specifications |
Case
|
protecting case: stainless steel
1.4571
Head: stainless steel |
Diameter |
6 x 1 mm
optional: neck reduction to 3 mm |
Length (in mm) |
50, 100, 150, 200, 250, 300 |
Pt100
Type |
3 wire |
Measurement range |
-50 ...
+200 ºC |
Accuracy |
class A |
Protection type |
IP 69K |
Delivery content
1 x sensor Pt100 WTR 350, user´s
manual |
Optional components |
|
KMU 100 Transducer
The KMU transducer is designed to
detect Pt100 temperature sensor and
convert it to a standard signal.
This transducer is characterized by
its compact dimensions and it allows
integration with almost any sensor.
The transducer provides the ability
to connect Pt100 sensors of 2,
3 or 4 wires. When you connect a 2-wire
sensor, the KMU 100 temperature
transducer has an automatic
compensation of the ducts, which
prevents the detection of inaccurate
readings due to the resistance of
the duct. |
|
|
