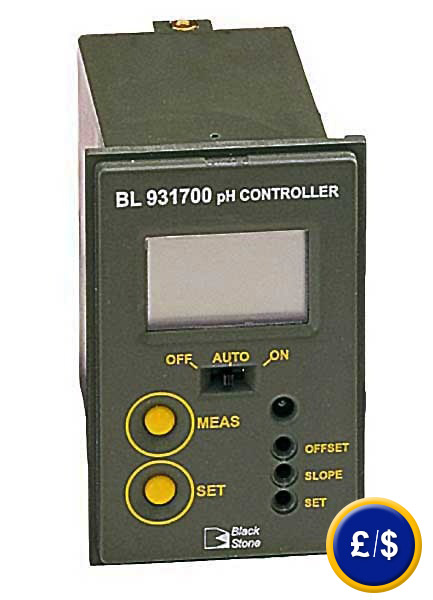

pH Regulator BL 931700 regulator of pH with compact housing / measurement range 0 pH… 14 pH / measurementsaccuracy thanks to the 2-point calibration / analogical output 4… 20 mA / big screen
|
The pH regulator BL 931700 is a pH regulator with differential input, to assembly in panel. Due to the pH regulator BL 931700 reduced dimensions, the regulator is an economic alternative in cases where an expensive installation is not really necessary. It pH regulator is an instrument easy to install and it requires little maintenance. The pH regulator comes in a resistant and water proof housing. It has a set-point with selection of acid or alkaline dose through contact regulators. The regulator allows a control system dtermined time to avoid one on metering. In the frontal part the pH regulator 931700 BL is equipped with a control selector , whereas at the same time in big LCD creen the indication of the measurement values takes place. The calibration in 2 points allows an express and easy adjustment of the respective electrodes. The pH regulator allows to directly obtain the measures with a pH electrode in the rank from 0 to 14 pH with resolution 0.01 pH. The pH regulator is available with different power supply to 115/230 V AC or 12 V DC. The action of control of each regulator can be deactivated, set to automatic or operated directly from the frontal panel manually. The regulator is used for example in the treatment of clean water or residual waters, neutralization of residual waters or for different industrial applications. In the following link, you will find a general vision of all the pH regulators.
|
|
The pH regulator BL 931700
|
- Analog output terminal 4… 20 mA for the logger connection - 1 dosification relay |
- Direct Connection for reference of the electrode - 2 point calibration - Connection for reference probe
|
Technical specifications |
Measurement range
|
0 ... 14 pH |
Resolution
|
0.01 pH |
Accuracy
|
±0.02 pH |
Register output
|
4 ... 20 mA, ±0.2 mA, max. 500 Ω
|
Calibration
|
2 points, manual, with potentiometer |
Compensation temperature
|
25 ºC |
Behaviour of the regulator
|
1 regulation point |
Display
|
LCD display
|
Dosification contact
|
2A, 240 V |
Modes
|
OFF, AUTO, ON |
Dosification maximum time
|
5 ... 30 minutes |
Dimensions
|
83 x 53 x 99 mm |
Dimensions for panel assembly
|
75 x 43 mm |
Weight
|
300 g |
Power supply
|
BL 931700-0: 12 V DC BL931700-1: 230 V AC |
Delivery content 1 x r pH regulator BL 931700-x, user manual |
Optional components |
- Here you will find pH electrodes compatible with the pH regulator - pH 7 buffer solution: HI 7007L, 500 ml bottle - pH 4 buffer solution: HI 7004L, 500 ml bottle - pH 10 buffer solution: HI 7010L, 500 ml bottle |
|
|
