Vehicle Noise Detector ADD3500
Vehicle Noise Detector to find disturbance sources / 6 channels /
 4 mobile transmitters to apply on motor vehicle / compact design

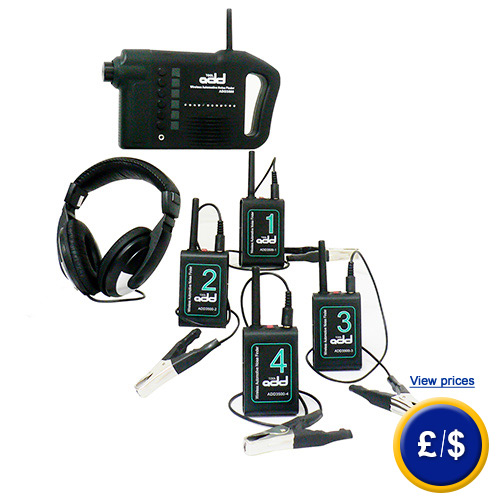

The vehicle noise detector ADD3500 is a device, that operates on batteries, and is designed for quick detection of noise sources at the motor vehicle. The wireless transmitter of the vehicle noise detector can be therefore positioned on various locations at the car. Thus the different channels of the vehicle noise detector can be checked in turns, in order to locate the disturbance source. The four transmitters that are included in the delivery are equipped with very sensitive microphones and can be applied an many different points of the car, e.g. wheel suspension, benzene or water pump, gear unit etc. Therefore the transmitter are connected by the provided clamps with the relevant parts. The receiver of the vehicle noise detector is equipped with an integrated loud speaker as well as head phones, that are provided. The receiver of the vehicle noise detector is equipped with 6 channels, so that a maximum of six transmitters can be connected. In case that you should have more questions regarding the vehicle noise detector ADD3500, please read the following technical data, use our contact form or call us: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703 Our technicians and engineers will gladly advise you regarding the vehicle-testers or all other products in the field of Control Systems, Laboratory Equipment, Measuring Instruments or Scales and Balances of PCE Instruments Ltd.

- Handy device
- 4 transmitters
- Head phones inclusive

- 6 channels
- Easy to navigate
- Integrated loud speakers

Technical specifications

LED display

noise level signaled through 12 LEDS

Operation temperature

-10 ... +45 °C

Voltage supply for receiver

6 x AA

Voltage supply transmitter

4 x AAA

Dimensions receiver

265 x 210 x 50 mm

Dimensions transmitter

57 x 157 x 35 mm

Delivery Content

1 x Vehicle Noise Detector ADD3500, 4 x transmitter, 4 x clamps with cable,
1 x instruction manual, 6 x AA batteries (for receiver), 16 x AAA batteries (for transmitter), 6 x velcro strips, 10 x cable straps, 1 x head phones, 1 x case
