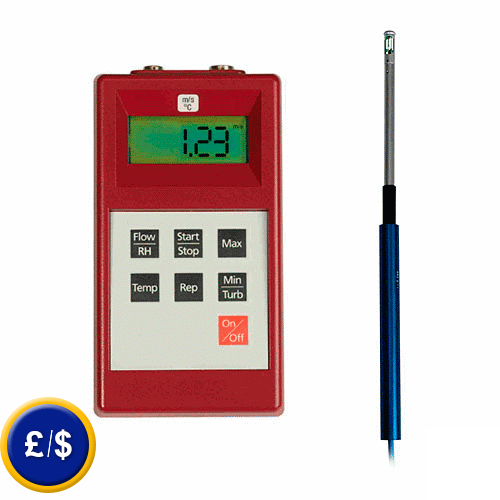

Hot Wire Anemometer ThermoAir3
Hot Wire Anemometer for measuring very low air flow / flow meter for industry / flow from 0.01 m/s / with directional or omnidirectional sensor
|
|
The hot wire anemometer ThermoAir3 specialises in measurements of very low air flows and determinations of turbulence grades. The humidity can also be determined with the separate humidity sensor. Automatic temperature compensation, barometric altitude correction, simple zero point alignment, individually determined sensor guarantees highly precise measurements. The Hot wire anemometer is easy to handle. It also has exchangeable sensors for flow, temperature and humidity, automatic zero point, calibration compensation from 0 … 40°C and measurement of turbulence grades. Low flow measurements in laboratories, clean rooms, air conditioning, drying and cooling systems as well as convenience and comfort measurements in the workplace are the typical applications for this instrument.. Here you can find an overview of all hot wire anemometers. If you have any questions about the wind velocity meter KM series, see the following technical specification or contact us:  UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you on all anemometers and all products in the field of regulation and control, measuring instruments and scales.
|
|

|
|
|
|
- Flow from 0.01 m/s
- Automatic sensor recognition
- Easiest operation
- Medium, minimal, maximum values retrievable
- Freely selectable measurement times from 2 s to 2 hours
|
- Analogue output 0 … 1 V
- Mini2Logger output
- Automatic temperature compensation
- 100 % guaranteed measuring tolerances
- Sensor directional or omnidirectional
|
|
Technical Specifications
|
|
Sensor types
|
Measurement area
|
|
ThermoAir3D1 directional sensor
ThermoAir3D5 directional sensor
ThermoAir3O1 omnidirectional sensor
ThermoAir3O5 omnidirectional sensor
ThermoAir3TH humidity and temperature sensor
|
0.01 … 1 m/s, 0 … 40 °C
0.01 … 5 m/s, 0 … 40 °C
0.01 … 1 m/s, 0 … 40 °C
0.01 … 5 m/s, 0 … 40 °C
0 … 99 % r.F., -20 … 60 °C
|
|
Measurement accuracy of flow at 22 °C
|
|
Measuring flow 1 m/s
Measuring flow 5 m/s
|
± 1.0 % v.E. and ± 1.5 % v.M.
± 0.5 % v.E. and ± 1.5 % v.M.
|
|
Measurement accuracy of temperature
|
|
Sensor 1 m/s
Sensor 5 m/s
Temperature compensation
Measuring value
Zero point
|
± 1.0 % v.E. and ± 2.0 % v.M./10 °C
± 0.5 % v.E. and ± 2.0 % v.M./10 °C
0 … 40 °C
± 2 % v.M./10 °C
± 1 % v.E./10 °C
|
|
Sensor directional
|
|
Head-size
Shaft
Inflow angle
Length
Cable
Storage temperature
|
Ø 8 mm
Ø 15 mm
± 30°
± 300 mm
1.5 m
-65 … 150 °C
|
|
Sensor omnidirectional with protection cage Ø 110 mm
|
|
Head-size
Shaft
Inflow angle
Length
Cable
Storage temperature
|
Ø 110 mm
Ø 15 mm
± 180°
310 mm
1.5 m
-65 … 150 °C
|
|
Humidity/temperature sensor
|
|
Measurement area humidity
Resolution
Accuracy
Measurement temperature
Resolution
Accuracy
|
0 … 99 % r.F.
0.1 % r.F.
± 3 % r.F.
-20 … 60 °C
0.1 °C
± 0.5 °C
|
|
Outputs
|
|
Flow or humidity
Temperature
|
0 … 1 Volt
10 mV/°C
|
|
General Specification
|
|
Dimension
Environment
Display
Measuring rate
Supply
Power consumption
Battery lifetime
Enclosure type of protection
Weight
Operation/Storage temperature
Air humidity
|
80 x 145 x 39 mm
dry instrumentation-quality air or inert gases
LCD 4 signs
2 measurements/second
1 x 9 Volt battery
approx. 40 mA
approx. 4.5 hours
IP 40
approx. 300 g
0 … 50 °C/-30 … 80 °C
0 … 99 % r.F., non condensing
|
|
Delivery Content:
|
|
1 x Hot wire Anemometer ThermoAir3, 1 x sensor (directional, omnidirectional or humidity/temperature sensor), 1 x transportation case, 1 x 9 Volt battery, 1 x user manual
|
|
|
Directional
Sensor directional of hot wire anemometer
Measurement area 0.01 … 1 m/s, 0 … 40 °C
Measurement area 0.01 … 5 m/s, 0 … 40 °C
|
|
|
Omnidirectional
Sensor omnidirectional with protection cage Ø 110 mm.
Omnidirectional means the emission or efficiency in all directions. Omnidirectional sensors are able to absorb air flow of all directions in area of 360°.
Measurement area 0.01 … 1 m/s, 0 … 40 °C
Measurement area 0.01 … 5 m/s, 0 … 40 °C
|
|
|
Humidity and temperature
Sensors for humidity and temperature of the hot wire anemometer
Measurement area 0 … 99 % r.F./-20 … 60 °C
|
|
Additional
- ISO calibration certificate
After some time of being in use, changes with the hot wire anemometer can occur and thus not allowing accurate measurements. While ordering the device you can order a recalibration in the laboratory as well as a certification according to ISO.
|
|
|
|
|
|
