PCE-UT 804 Laboratory Multimeter highly accurate and effective value laboratory multimeter with diverse measurement functions, data register, USB and RS-232 interface, powered via the mains or by batteries
|
PCE-UT 804 Laboratory Multimeter can be used as a portable or fixed device. This laboratory multimeter can be powered via the mains or by batteries. Due to its wide measurement ranges, this multimeter will cover all your needs. Along with determining DCV, ACV, DCA, ACA and resistance accurately, this multimeter also determines capacitance, frequency, revolutions and temperature. It also incorporates an acoustic continuity check as well as transistor and diode tests. Good technical possibilities are shown in the following: accuracy of ±0.025 %, real effective value functions up to 100 kHz and frequency measurements up to 400 MHz. Furthermore, you can store 999 measurement values by hand and restore them in the multimeter or these values can be transferred to a computer with the help of the software included in the delivery (USB and RS-232 data cable is also included). Data registration function (from 1 to 255 s) allows to check the curve linearity as well as the long-term registers in components, engineers and electrical installations. The laboratory multimeter is sent calibrated from the factory and an ISO calibration certificate can be ordered with the device or as annual recalibrations. There is another model of multimeter with multiple functions, graphics, interface and software (oscilloscope, multimeter, logical analyser) which can be seen here. At this link you will find an overview of all the multimeters available at PCE-Instruments.
|
PCE-UT 804 Laboratory Multimeter
|
Compartment integrated accessories for the PCE-UT 804 Multimeter
|
Additional components for the PCE-UT 804 Multimeter.
|
- Automatic or hand-operate range selection
- DCV, ACV, DCA, ACA, resistance, capacitance, frequency, temperature, transistor test
- Continuity and diode tests
- Measurement of the effective value up to 100 kHz.
- Min./max./HOLD functions
- Annual measurement for 9999 values
- Automatic data register up to 9999 values. - Adjustable measurement rate of 1 - 255 s.
- Recorded data can be read
- Automatic shut off (it can be deactivated)
- Battery indicator
|
- Big LCD display
- Analogue bar graph with 40 segments
- High frequency range up to 400 MHz
- Loop current measurement 4 - 20 mA/0 - 100%
- USB and RS-232 interface
- Software and data cable are included in the delivery
- Powered via the mains or by batteries
- ISO calibration certificate can be issued
- Protection to meet the IEC . 1010; CAT I 1000 V/II 600 V standards
View or Print user manual
|

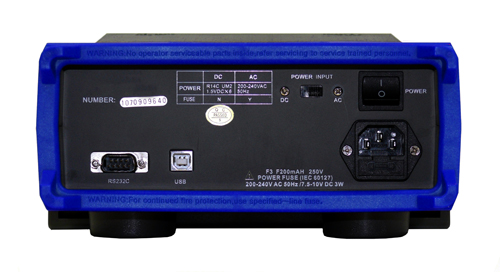

Back side of the PCE-UT 804 laboratory multimeter with both interfaces.
|
Technical specifications |
Measurement ranges |
DCV: 400 mV/4/40/400/1000 V ACV: 4/40/400/1000 V DCA: 400/4000 µA; 40/400 mA; 10 A ACA: 400/4000 µA; 40/400 mA; 10 A OHM: 400 Ω; 4/40/400 kΩ; 4/40 MΩ Cap.: 40/400 nF; 4/40/400 µF; 4/40 mF Frec.: 40/400 Hz/4/40/400 kHz; 4/40 MHz Temp.: -40 °C ... +1000 °C |
Resolution |
DCV: 0.01 mV; 0.0001/0.001/0.01/0.1 V ACV: 0.1 mV/0.001/0.01/0.1 V DCA: 0.01/0.1 µA; 0.001/0.01 mA; 0.001 A ACA: 0.01/0.1 µA; 0.001/0.01 mA; 0.001 A OHM: 10 mΩ/0.1/1/10 Ω; 0.1/1 kΩ Cap.: 1/10 pF; 0.1/1/10 nF; 0.1/1 µF Frec.: 1/10 mHz; 0.1/1/10 Hz; 0.1/0.01 kHz Temp.: 1 °C |
Accuracy |
DCV: ± 0.025% of reading + 5 dgt (up to 400 V) ± 0.05% + 5 dgt (above) ACV: ± 0.4% of reading + 30 dgt (up to 400 V) ± 1 % + 30 dgt (above) DCA: ± 0.1 % of reading. + 3 dgt (up to 4 mA) ± 0.15 % + 15 dgt (up to 400 mA) ± 0.5 % + 30 dgt (above) ACA: ±1.0% of reading + 30 dgt (up to 400 mA) ± 2.5 % + 40 dgt (above) OHM: ± 0.3% of reading + 40 dgt (up to 400 kΩ) ± 0.5 % + 40 dgt (up to 400 kΩ) ±1.0 % + 40 dgt (above) Cap.: ± 1 % of reading.+ 20 dgt (up to 40 µF) ± 1.2 % of reading+ 20 dgt (up to 400 µF) ±5 % of reading + 20 dgt (to 4 mF) Frec.: ± 0.01 % of reading + 8 dgt Temp.: ± 1.0 % of reading + 30 dgt |
TRMS frequency range |
up to 100 kHz |
Loop current measurement 4 ... 20 mA |
indicated in 0 ... 100 % |
Work cycle measurement |
100 %/0.01 %/±0.01 % + 40 digits |
Annual memory |
9999 measuring values |
Automatic data register |
9999 measuring values |
Rate of measurement |
1 ... 255 seconds |
Data retrieval system |
with the multimeter or by means of the software |
Measurement quota |
2-3/seconds |
Acoustic signal of the continuity test |
under 50 Ω |
Diode test |
up to 2.8 V/1 mA |
Interface |
USB and RS-232 |
Software and data |
both included, compatible with Windows 95, 98, 2000 and XP |
Max. resolution display |
backlit LCD with up to 40,000 counters for primary reading and 4000 for secondary one. |
Analogue bar graph |
40 segments with 10 measurement/s |
Power |
230 VAC and/or 6 x 1.5 V batteries |
Auto shut-off |
adjustable and it can be deactivated |
Dimensions |
240 x 105 x 310 mm |
Weight |
3000 g |
Operating temperature |
max. 75% H.r./0 ... +50 ºC |
Protection/Standard |
IEC 1010-1, CAT I 1000 V/II 600 V |
Use of the PCE-UT 804 Laboratory Multimeter |
|
Software
|
Graphic representation of some measurements taken by the PCE-UT 804.
|
Delivery content 1 x PCE-UT 804 Laboratory Multimeter, 1 x test cable set, 2 x big alligator clips, 2 x small alligator clips, temperature sensor (K type), 1 x adapter, 1 x battery, 1 x mains adaptor, 1 x USB cable, 1 x RS-232 cable, 1 x software and user manual.
|
Additional components
- ISO Calibration Certificate
For companies that wish to include this device in their set of internal testing equipment or for annual recalibrations. The ISO certificate includes a laboratory calibration and a control document with all the measurement values. ISO calibration certificate can be performed with current (AC/DC) or voltage (AC/DC).
|
|
- Amp clamp adaptor Adaptor for indirect measurement of current up to 1000 A without interrupting the cable. Range: 200/1000A DC/AC Accuracy: ±1.5/2% A DC zero reset Dimensions: 190 x 64 x 33 mm Maximum diameter of cable: 33.5 mm |
|
- Revolution adaptor Adaptor with revolutions sensor and 1 m cable. For optical measurement of revolution between 100 and 20,000 RPM in two ranges. - 0.1 mV DC/1 RPM (range 1) - 0.1 mV DC/10 RPM (range 2) Dimensions: 190 x 73 x 37 mm |
|
- Pressure adaptor Adaptor with pressure sensor and 1 m cable. For absolute mesaurement of pressure between 3.5 and 3500 kPa. Accuracy: ±1% (up to 1700 kPa); ±2% (up to 2400 kPa) and ±5% (up to 3500 kPa) Resolution: 0.1/1 kPa Dimensions: 100 x 50 x 25 mm; 1/4" sensor |
|
- Humidity adaptor Adaptor with humidity sensor with handle and 1 m cable. Range: 10 to 95% r.h. Accuracy: ±3% r.h. Resolution: 0.1% r.h. Dimensions: 100 x 50 x 25 mm |
|
- Light adaptor Adaptor with light sensor and 1 m cable. Three rages: 0 to 2000/0 to 20,000 and 0 to 50,000 lux Accuracy: ±5% Resolution: 1, 10, 100 lux Dimensions: 100 x 50 x 25 mm |
|
Air velocity adaptor Adaptor with an air velocity sensor and 1 m cable. Range: 0.2 to 30 m/s; Accuracy: ±2% Resolutin: 0.1 (m/s; km/h; knots) Dimensions: 100 x 50 x 25 mm |
|
- Sound adaptor Adaptor with sound sensor and 1 m cable. A-weighting; can be externally calibrated (PCE-SC 41 calibrator) Ranges: 30 to 130 dB (in three ranges) Accuracy: ±1.5 dB (IEC 651 class II) Dimensions: 107 x 53 x 29 mm |
|
- EMF adaptor Adaptor with EMF sensor and 1 m cable. Range: 0 to 20 microTesla/200 milliGauss Accuracy: ±4% Resolution: 0.1 µTesla/1 milliGauss Bandwidth: 30 to 300 Hz Dimensions: 100 x 50 x 25 mm |
|
|
|
