Mechanical

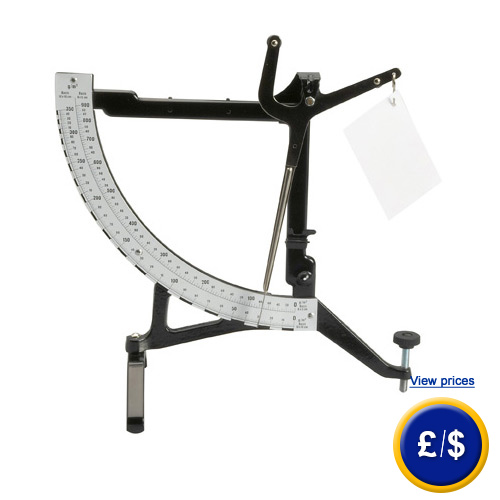

Balance MPS-M
Mechanical
Balance to
determine quickly and easily the weight of a sheet of paper /
for
paper weight up to 900 g/m²
|
The
mechanical balance serves to estimate the weight of papers or fleeces, textiles … in gram per square meter. This
mechanical balance will be delivered including 2 stencils (for tearing out of samples of thin papers). For heavier papers, fleeces, rubber or textiles, a sample cutter with a sample area of 100 mm², should be used. After cutting the samples, just hang them at the paper balance and read off the scale
(depending on the sample’s size). A neutral position can be adjusted at the screw on the base’s right site before every weighing. If you have any questions about the package scale, please
look at the technical specifications below or contact us. If you have further questions about the
package scales,
look at the following technical information, read the technical data
or get in contact with us: +44( 0 )2380 987030.
Our technicians and engineers will inform you about our mechanical
balance or any other product in the field of Regulation
and Control, Measuring Instruments
or Scales and
Balances of PCE
Instruments Ltd..
|
|
|
The mechanical paper balance‘ s features:
|
- no maintenance- or
operating costs
- very easy handing
- adjusting of neutral position via screw
|
-
post made of varnished steel
- lever and tongue made of brass-plated sheet
- cast-iron base
|
Technical
specifications
|
Weighing range
|
scale1: 0 ... 350 g/m² for samples of 100cm²
scale2: 0 ... 900 g/m²for samples of 40cm²
|
Reading
|
scale1: 1 g from 0 up to 200 g/m² and. 2 g up to 350 g/m²
scale2: 5 g from 0 up to 600 g/m² and 10 g up to 900 g/m²
|
Accuracy
|
1/100 g
|
Height
|
260 mm
|
Colour
|
black
|
Weight
|
250 g
|
Delivery
content of the mechanical balance
1 x Mechanical
Balance MPS-M, 2 x stencil (40 + 100cm²), user’s manual
|
Optional components
|
|
sample
cutter for 3mm or 10mm material thickness, the sample cutter is for samples with
a size of 100 cm²
|
|
|
Here you will find an overview of all the scales and balances available in the offer of PCE Instruments. |
