1-Phase Power-Meter C.A 8230
1-phase power-meter up to 6500 A/ Inrush-measurement/ Graphic-LCD/ Interface/ Data logger/ for 1- phase measuring and symmetric 3- phase networks

The 1-phase power-analyser C.A 8230 is designed specifically for the electrical trade, for installers and customer engineers. The 1-phase power-meter is due to its large variety of measuring facilities applicable for training- and educational purposes as well. Being perfectly user-friendly the 1-phase power-meter is an outstanding equipment for controlling of electrical installations, especially if they are provided with vast power- electronic systems. The instrument is suitable for outdoor use, as the 1-phase power-meter has a fold-out stand and can do local measurements. Ergonomically and equipped with a large graphic-display the 1-phase power-meter automatically recognises the connected current transducer type. Whether it’s the alternating rms for AC and DC, the peak value or the total harmonic-wave value, the 1-phase power-meter shows every data via graphic display in wave form. Measurement of short-timed power line-flickers is performable as well. All required measuring units for Single-phase-networks and symmetric three-phase-currents are provided by the 1-phase power-meter in order to obtain a broad image of the energy-power. With the 1-phase power-meter harmonic waves with an order up to 50 are individually measurable. Another plus-factor: in expert mode the 1-phase power-meter can detect the direction of the harmonic wave as well. Every data collected in days can be stored in the power-meter. With the Inrush-mode the motor start-up current can be analysed exactly and displayed in periodic exactitude. With its compact and impact-resistant anisotropic liquid-LCD-display as well as with its ergonomic controlling interface, the 1-phase power-meter is easy and intuitively to handle. For further information about the 1-phase power-meter, take a look at the following technical data or call our Hotline: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you regarding the 1-phase power-meter or any product in terms of regulation and control, and scales and balances of PCE Instruments.

- TRMS-measurement
- Power measuring up to 6500 A
- Crest factor detection
- Harmonic up to 50th order

- Min/max value determination
- Storage and data logger
- Switch-on power measuring
- Flicker- detection

Technical Data 1-Phase Power-Meter C.A 8230

Voltage

6 ... 600 V

Power (depending on power converter)

100 mA ... 6500 A

Basic accuracy

0.5%

Measuring values

Min, max, AVG, peak, crest factor

Power

1.2 VA…3.9 MVA

Energy measurement

yes

Harmonic (IEC 61000-4-5)

THD V, A, VA, 50 harmonic RMS and %

Flicker

PST short-time powerline flicker

Motor start-up power

yes + graphic display

Threshold test

yes

Rotary field-direction

yes

Storage

1.5 MB

Frequency of fundamental oscillation

- 40…70Hz

Sampling frequency

12.8 kHz

Power supply

Adapter/ NiMH battery

Battery operating time

40 hrs (without background lightning)
16 hrs (with background lightening)

Display

Coloured LC-Display

Electrical security

IEC 61010 CAT III 600 V

IP code

IP 54

Dimensions

211 x 208 x 60 mm

Weight

880 g

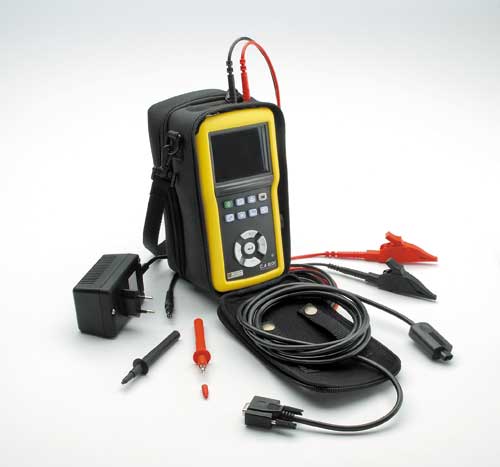

Delivery content 1-Phase Power-Meter C.A 8230

1 x 1-phase power-meter C.A 8230, 1 x transportation case, 2 x measuring line,
2 x probe tips 4mm, 2 x alligator clamps, 1 x Adapter, 6 x 1. V battery,
1 x optical RS232/ USB cable, 1 x system software

Available models of Energy and Power Analyser C.A 8334B

C.A 8230-MN93A

Current transformer MN93A
Measuring range: 5 mA…120 A

C.A 8230- AmpFlex A 192/450 mm

Current transformer AmpFlex A193
Measuring range: 30 A…6500 A
