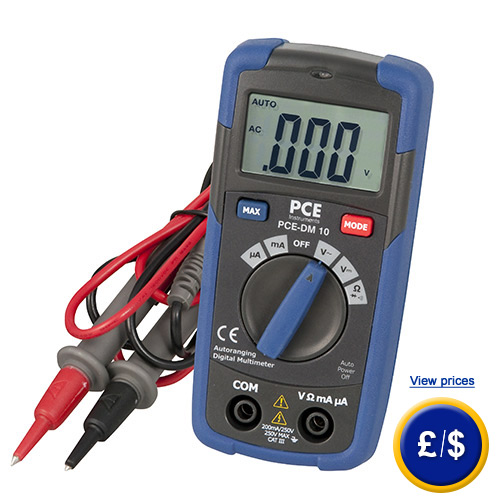

Beginners Multimeter PCE-DM 10 beginners multimeter for amateurs to measure voltage, current and resistance / with non-contact voltage detection / MAX function
|
This multimeter is easy to handle and it is an ideal device for beginners in the electro-technical sector. Due to the small dimensions the Beginners Multimeter PCE-DM 10 will fit into boxes and drawers of a car. Alternating voltage as well as direct current are able to be measured with the Beginners Multimeter PCE-DM 10. Also resistance, diode tests and the continuity test are part of the widespread functions of the Beginners Multimeter PCE-DM 10. MAX function is integrated to support the evaluation of measured values. The beginners multimeter has got an automatic switch-off function after 15 minutes for saving the battery. A front side non-contact detection of voltage is a highlight which is shown on the LED display. If you have any questions about this beginners multimeter, see technical data or contact us: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will be happy to help you with all multimeters and all products in the field of measuring instruments, regulation and control and scales.
|
|
- automatic switch-off - 2000 counts - automatic selection (R, V~ and V-)
|
- non-contact detection of voltage - diode and continuity test - MAX function - robust housing
|
Technical Specifications:
|
DC voltage
|
Measuring range |
Resolution |
Accuracy |
|
200.0 mV |
0.1 mV
|
± 0.5 % of the read-out value ± 4 dgts |
|
2.000 V 20.00 V 200.00 V |
1 mV 10 mV 100 mV |
± 1.2 % of the read-out value |
|
600 V |
1 V |
1.5 % of the read-out value |
AC voltage
|
2.000 V |
1 mV |
± 1.2 % of the read-out value ± 4 dgts |
|
20.00 V |
10 mV |
± 5 % of the read-out value ± 15 dgts |
|
200.00 V |
100 mV |
± 2.0 % of the read-out value ± 4 dgts |
DC current (automatic selection of operating range for µA and mA)
|
200.00 µA |
0.1 µA |
± 1.0 % of the read-out value ± 3 dgts |
|
2000.00 µA 20.00 mA 200.00 mA |
1 µA 10 µA 100 µA |
± 1.5 % of the read-out value ± 3 dgts |
AC current (automatic selection of operating range for µA and mA)
|
200.00 µA |
0.1 µA |
± 1.5 % of the read-out value ± 3 dgts |
|
2000 µA 20.00 mA 200.00 mA |
1 µA 10 µA 100 µA |
± 1.8 % of the read out value ± 3 dgts |
Resistance (automatic selection of operating range) |
200.0 Ω |
0.1 Ω |
± 1.5 % of the read-out value ± 4 dgts |
|
2.000 kΩ |
1 Ω |
± 1.2 % of the read-out value ± 2 dgts |
|
20.00 kΩ 200.0 kΩ |
10 Ω 100 kΩ |
± 1.5 % of the read-out value ± 2 dgts |
|
2.000 MΩ 20.00 MΩ |
1 kΩ 10 kΩ
|
± 2.0 % of the read-out value ± 3 dgts |
General
|
Protection class
|
EN61010-1
|
Isolation
|
class 2, double isolation
|
Category of over-tension
|
CAT III 600 V, CAT II 1000 V
|
Display
|
illuminating LCD with display and 2000 counts
|
Sampling rate
|
2 times per second, nominal
|
Automatic switch-off
|
the measuring instrument will turn power off after 15 minutes of inactivity
|
Environmental conditions
|
0 ... 50 °C (32 ... 122 °F) at <70 % r.F.
|
Storage conditions
|
-20 ... +60 °C (-4 ... +140 °F) at <80 % r.f
|
Degree of pollution
|
2
|
Power supply
|
1 x 12 V battery, type A23S
|
Dimensions
|
108 x 53 x 32
|
Weight
|
102 g
|
Below you will find further images of the Beginners Multimeter PCE-DM 10 |
|
|
Delivery content of the Beginners Multimeter PCE-DM 10
1 x Beginners Multimeter PCE-DM 10 2 x Measuring cable 1 x 12 V battery 1 x manual description
|
|
|
|
