Closing Force Device FM 100
Closing force device for power driven doors and gates / measurement range 0 ... 2000 N /
standards EN 12445/12453, EN 60335-2, DIN V 18650, ASR A1.7 etc. / external data logger /
robust design / software / single button operation / with ISO or DAkkS certificate

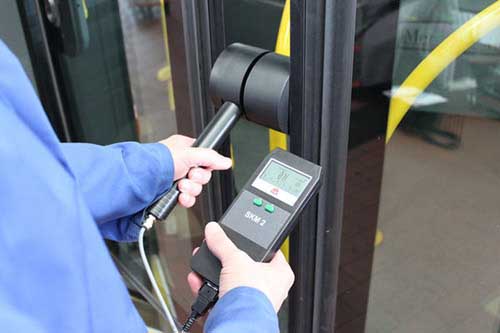

The closing force device has a measurement range of 0 … 2000 N and an accuracy of ±3 N or 3 %. The closing force device is an electronic pinch force measuring system for power driven doors and gates. Typical applications for the closing force device include final inspection of new installations and periodic conformance testing of existing equipment. During the measurement our closing force device supports  the standards EN 12445/12453, EN 60335-2, DIN V 18650, ASR A1.7 and many more.

The values of the closing force device will be saved to the external display. It is possible to save 100 measurements from the closing force device to it, after a measurement, the external display of the closing force device can be connected to a PC. With the Pinch Pilot software included with the closing force device, the measurements can be downloaded and analyzed.

The software that comes with the closing force device has an integrated database. In the database of the software that comes with the closing force device it is possible to save all measurements assigned to a customer and the vehicle. Also, it is possible to print a report for all measurements that are done with the closing force device.

If there are any questions about the closing force meter FM 100 have a look at the technical specification below or call: UK customers +44 (0) 161 464902 0 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you concerning all closing force devices and all other products in terms of regulation and control or scales and balances by PCE Instruments.

- measurement range 0 ... 2000 N
- for power driven doors and gates
- easy to use thanks to the single button operation
- datalogger for 100 measurements

- analysis software with database
- supporting EN, DIN and ASR standards
- robust metal housing
- with ISO or DakkS certificate

Technical specification

Measurement range

0 ... 2000 N

Resolution

1 N

Accuracy

± 3 N or 3 % of reading

Stiffness

500 N/mm

Gap width

50 mm / 1.9"

Diameter

80 mm / 3.1"

Measuring principle

DMS transducer

Memory

100 measurements

Acquisition frequency/rate

500 Hz / 2 ms

Power supply SEB2

battery 9 V , e.g. 6LR61

Battery voltage monitoring

yes

Environmental conditions

Operating temperature range

-10 ... +40 °C / 14 ... 104 °F

Storage temperature range

-40 ... +50 °C / -40 ... +122 °F

Humidity

max. 90 % RH, non-condensing

Dimensions

210 x 80 x 50 mm / 8.2 x 3.1 x 1.9"

Weight

2.1 kg / 4.6 lb

Delivery content

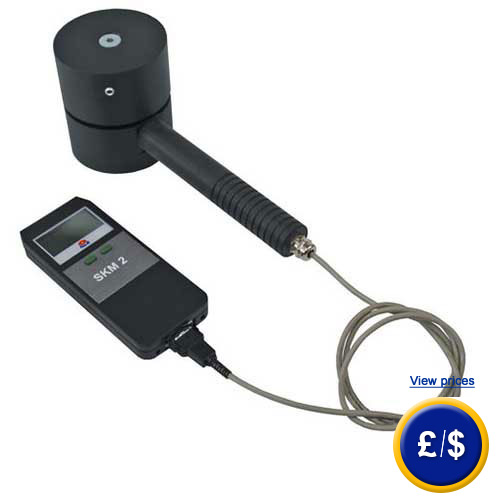

1 x closing force transducer FM100 with 2.5 m / 8.2 ft connection cable, 1 x separate measured value acquisition module (SEB2 display device) with LCD display, LED display, membrane button and serial interface, 1 x 9 V block battery, 1 x transport case with foam insert for the complete scope of delivery,
1 x PC connection cable (USB), 1 x USB data stick with PC evaluation software Pinch Pilot and documentation, 1 x manual, 1 x ISO calibration certificate
