Dewpoint Scanner PCE-DPT 1

Dewpoint Scanner PCE-DPT 1 Dewpoint Scanner to indicate temperature, air humidity and dew point / Acoustic and optical alarm / background lights / double laser / automatic switch-off
The dewpoint scanner consists of an infrared thermostat and an integrated humidity meter. By means of those two sensors the relevant parameters for the determination of dew points can be measured. In case this dewpoint is either reached or even trespassed, there is a higher risk of mold formation. As soon as the dewpoint sensor starts its operation, the room temperature and air humidity can be measured. The calculated dew point can be then used as a reference for infrared measurements at locations that have a higher risk of potential fungal infestation. Thus the dewpoint scanner indicates the exact location of miscellaneous indulgences of the insulation, resulting in humid spots and potential mold formation. Use this dewpoint scanner PCE-DPT 1 to detect locations with higher risk of mold formation in you home, hobby spaces etc. in order to prevent those from happening. If there are any questions about this Dewpoint Scanner PCE-DPT 1 please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you regarding all force meters and all products in the field of measuring instruments, regulation and control and scales.


- Indication of temperature, air humidity and dew point - Acoustic and optical alarm - Background lights - Double laser - Automatic switch-off	- Barograph indication - Relative measuring space: 12:1 - Versatile application - Simplified operation - Delivered with battery and bag

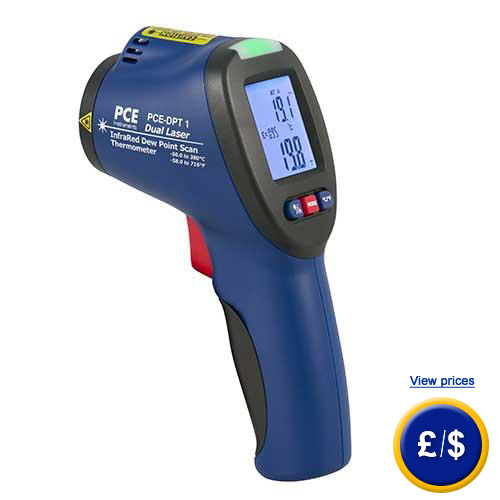

Here you can see the three-color- alarm-LED at the dewpoint scanner. It indicates the level of risk for mold formation in three levels.
Technical Specifications of the Dewpoint Scanner
Measurement range - Temperature - Air humidity - Dew Point	-50 ... +380 °C 0 ... 100 % r.H. (non-condensing) -30 ... +100 °C
Resolution - Temperature - Air humidity - Dew point	0.1 °C 0.1 % r.H. 0.1 °C
Accuracy - Temperature	± 3.5 °C von -50 ... +20 °C ±1 % + 1.5 °C von +20 ... +350 °C
- Air humidity	± 3.5 % rH
Optic	12:1
Emission level	0.95 (fixed)
IR wave length	8 ... 14 µm
Laser class	2
Laser wave length	630 ... 670 nm
Max. laser output capacity	< 1 mW
Operating conditions	0 ... 50 °C / < 80 % r.H
Surrounding conditions	0 ... +60 °C / 10 ... 90 % r.H.
Power Supply	1 x 9 V bloc battery
Dimensions	58 x 168 x 82 mm
Weight	163 g
Application of the Dewpoint Scanner PCE-DPT 1

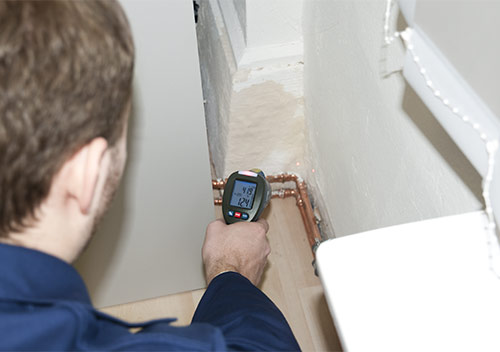

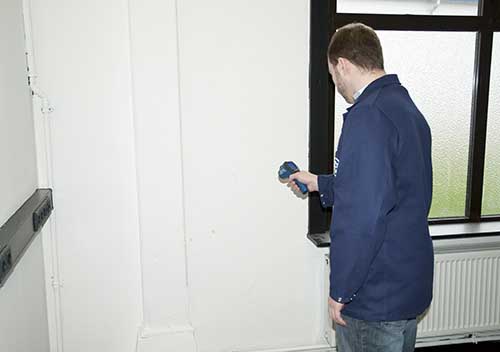

Here you can see the Dewpoint Scanner PCE-DPT 1 during application: facilitating the test of walls. In the image above you can see a measuring location at an exterior wall, which has gotten moist. In this case the Dewpoint Scanner sets off an optical and acoustic alarm signal.
Delivery Content of the Dewpoint Scanner PCE-DPT 1:
1 x Dewpoint Scanner PCE-DPT 1, 1 x case, 1 x 9 V bloc battery 1 x instruction manual
Optional Equipment for the Dewpoint Scanner PCE-DPT 1
ISO calibration / certification For companies that want to admit the device to their internal pool of test devices. The calibration certificate is made by test laboratories and is a compare of the standard value and the measured value. Initial as well as annual calibration possible.
