Micromanoscope ManoAir500-1 /ManoAir 500-2
Micromanoscope to measure gasiform media /  with automatic temperature compensation / channel-caliber per keyboard adjustable (for l7min or m3/h) / internal barometer module / optional external humidity and temperature sensor to connect

This micromanoscope is a static differential pressure manometer, which facilitates for quick and accurate measurements of differential pressure. The universally applicable micromanoscope ManoAir500 displays apart from Pa, mbar and mmH2O also immediately the flow speed of gasiform media. Therefore temperature of that medium, effective surrounding pressure and humidity are also factored. This hard-wearing device can for example also be used with a dynamic pressure sensor , in order to determine the flow speed in channels. The micromanometer stands out due to its universal operation range as a relative and differential pressure meter with the potential of flow speed measurement under natural conditions (compensation of medium temperature, humidity and surrounding pressure), as well as volume flow rate determination through variable channel calibers. Thus the micromanometer is ideal for application in industry, service and in laboratories. If there are any questions about this micromanoscope ManoAir500, please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you in all manometers and all products in the field of measuring instruments, regulation and control and scales.

- 2 models: measuring range ± 200 Pa
                 measuring range ± 2000 Pa

- Units: pressure: Pa, mbar, mmH2O,
   flow: m/s, l/min, m3/h,
   barometer: kPa, bar
   with humidity sensor: % rH
   with humidity sensor: °C

- Integrated barometer module

- Besides NTC. and PT1000 temperature sensors are also thermal elements of type E, J, K, T applicable

- External humidity and temperature sensors connectable

- Average, minimum and maximum value per key press

- Temperature, humidity and barometer are shown per key press

- Channel caliber shown by pressing key (for l/min or m3/h)

- Standard analogue output for integration into printing process

- Automatic temperature compensation of printer sensor

- Flow calculation via standard or variable density

Technical Specifications

Type

ManoAir500-1

ManoAir500-2

Measuring range at 100 %

±200 Pa

±2000 Pa

Measuring range at 10 %

±20 Pa

±200 Pa

Resolution at 100 %

0.1 Pa

1.0 Pa

Resolution at 10 %

0.01 Pa

0.1 Pa

Accuracy at 100 %

±0.2 Pa

±2.0 Pa

Accuracy at 10 %

±0.05 Pa

±0.5 Pa

Overload capacity

4 bar (max. static pressure)

Pressure connections

plug connection for tube Ø 3 mm

Measured medium

dry instrument air or inert gasses

Unit

pressure: Pa, mbar, mmH2O
flow: m/s, l/min, m3/h

Display

LCD 4 digit

Measurement rate

2 measurements per second

Power Supply

battery ( 2 x 9 Volt) or external adapter

Power consumption

approx. 40 mA

Battery life-time

approx. 8 hrs

Outputs

Pressure : ± 1 Volt flow: ± 1 Volt
output for Minii2Logger (interval 0.5 s)
output for RS232 (interval 0.5 s)

Enclosure dimension

190 x 150 x 70 mm (with bracket 250 x 180 x 70 mm)

Enclosure protection type

IP 40

Weight

approx. 1000 g

Operating temperature

+10 ... +40 °C

Storage temperature

-30 ... +80 °C

Air humidity

0 ... 90 % rH, non bedewing

Delivery content

1 x micromanoscope ManoAir500-1 or ManoAir500-2, 2 x batteries 9 V, 1 x instruction manual

Optional Equipment

The humidity and temperature sensor for micromanoscope ManoAir500

Humidity and temperature sensor

HygroAir 95.0272

Measuring range

0 ... 99.9% rH

Calibrating accuracy

±1.5 % rH. at 10 - 95 % rH

Repeatability

0.5 % rH.

Temperature measuring range

-10 ... 60 °C

±0.35 °C at -10 ... 50 °C

0.1 °C

Ø 22 x 32 mm

Ø 25 mm

Ø 26 mm

195 mm

1.8 m

-65 ... 150 °C

The universal temperature sensor for micromanoscope ManoAir500

Air sensor

Air-temperature sensor 95.0198

Measuring range

-20 ... 140 °C

Resolution

0.1 °C

Measurement accuracy at 0 ... 70 °C

0.2 °C
outside 0.5 °C

Operation temperature

-30 ... 140 °C

Head size

Ø 3 x 100 mm

Shaft

Ø 10 x 80 mm

Inlet opening

Ø 5 mm

Sensor length

180 mm

Cable length

1.5 m

Storage temperature

-65 ... 150 °C

The surface temperature sensor for micromanoscope ManoAir500

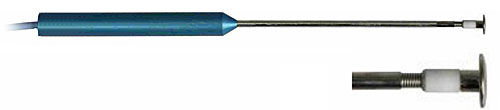

Surface temperature sensor

Surface temperature sensor 95.0199

Measuring range

-20 ... 140 °C

Resolution

0.1 °C

Measurement accuracy at 0 ... 70 °C

0.2 °C
outside 0.5 °C

Operation temperature

-30 ... 140 °C

Head size

Ø 3 x 100 mm

Shaft

Ø 10 x 80 mm

Sensor length

180 mm

Cable length

1.5 m

Storage temperature

-65 ... 150 °C

The universal high temperature sensor for the micromaniscope ManoAir500

High Temperature sensor

Universal high temperature sensor 95.0273

Measuring range

-20 ... 600 °C

Resolution

1 °C

Measurement accuracy at 0 ... 70 °C

0.5 °C
outside 1.0 °C

Operation temperature

0 ... 600 °C

Head size

Ø 3 x 230 mm

Shaft

Ø 22 mm

Inlet opening

Ø 4 mm

Sensor length

350 mm

Cable length

1.8 m

Storage temperature

-65 ... 150°C

- ISO calibration certificate After some time of operation in a factory alternations at the micromanoscope ManoAir500 might occur und thus the measurement accuracy of the device might be compromised. A Recalibration in laboratories as well as a certification according to ISO you can commission from us at any time. Surely also for your initial order.
