High-Frequency-Detector-Set HFE35C
High-Frequency-Detector-Set up to max. >3.3 GHz/ for electric alternating fields/ operates on adapter and recharger/ for professional HF-Measurement/ for GSM, DECT, WLAN…

he High-Frequency-Detector-Set HFE35C contains the HF35C with an enhanced frequency range caused by an additional antenna. The special compensated LogPer-Antenna contained in the High-Frequency-Detector-Set is designed for ranges above 800 MHz, while the Horizontal Isotropic Ultra Broadband Antenna is designed for a range within 27 MHz and 2.5 GHz. The combination between the extrabroad frequency response of the High-Frequency-Detector-Set HFE35C and the quasi-ideal isotropic feature of the UBB27 allow a profound overview of the load situation. Thus the High-Frequency-Detector-Set HFE35C is in areas of building biology an essential equipment. For further information about the High-Frequency-Detector-Set HFE35C please read the following technical data or call our Hotline: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our engineers and technicians will gladly advise you on the High-Frequency-Detector- Set or any other product in areas of regulation and controls or scales and balances of PCE Instruments.

- Frequency range above 2.5 GHz
- Measuring range up to 1999 µW/m²
- For electric fields
- 2 different antennae

- acoustic signal
- for use in buildings biology and engineering
- Operation on adapter and recharger
- AC/DC output

Technical specification of the High-Frequency-Detector-Set HFE35C

Frequency range

27 MHz …> 3.3 GHz

Sensortype

2 antennae
Log-Periodic Measuring Antenna
Quasi-Ideal Ultra Broadband Antenna

Measuring Range

0.001… 1999 µW/m²

Accuracy (depending on frequency)

Including linearity deviation: ± 6 dB
Zero Drift ± 9 Digit

Audio Analysis

acoustic signal equal to frequency modulation and field strength for identification of pulsed and unpulsed radiation sources (GSM, DECT, etc.) and raised level of load situation

Signalrating

Peak Value and Mean Value
Peak Hold
Quantified differentiation of pulsed and unpulsed radiation (patented switching mechanism)

Signal output

AC- Output (calibrated, demodulated signal)
DC- Output (scaleable)

Power Supply

9-Volt NiMH Battery
Low-Batt.- Display, Auto-Power-Off-Function
Adapter and Recharger (included in delivery)

Average Running Time

7…8 hrs

Weight

ca. 0.92 kg

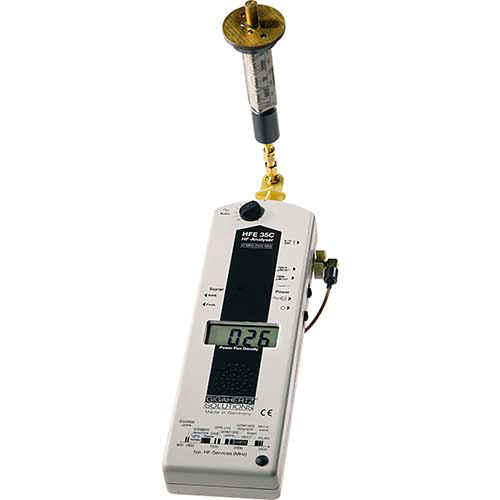

High-Frequency-Detector-Set HFE35C with quasi-isostropic-ultrawideband-antenna

Delivery content

1 x High-Frequency-Detector-Set HFE35C, 1 x LogPer-Antenna and UBB-Antenna, 1x internal NiMH-Battery, 1 x Adapter and Recharger,1 x High-Pass Filter HF800,1 x High-Frequency- Amplifier HV10, 1 x Attenuator DG20_G10, 1 x detailed Instruction Manual, 1 x Case
