Hydraulic Force Meter – PCE-HFG Series
Hydraulic force meter to measure hydraulic pressure/ hydraulic force with trailing pointer /
measuring value of force display in newton [N] /
with mouinting holes / 27 mm ring opening

A hydraulic force gauge is based on the principle that the force acting on the plunger is measured hydraulically. The hydraulic pressure generated is displayed on a scale in Newtons by the hydraulic force gauge. With the integrated drag pointer, our hydraulic force gauge can display the respective maximum measured value.

Another special feature of the hydraulic force gauge is the 27 mm ring opening. With this ring opening, the hydraulic force measuring device can be used to carry out measurements on, for example, guide rails, shafts and bolts from a hydraulic press, for example. With the insertable plunger adapter, the hydraulic force gauge can be converted from a ring force gauge to a compression plunger force gauge in a matter of seconds. The hydraulic force measuring device can therefore be used flexibly.

A hydraulic force measuring device is used wherever there are forces that need to be measured. A hydraulic force gauge can therefore be optimally used for maintenance measurements and adjustment work on industrial machines, for example.

If you decide to perform such long-term measurements, you will find here adequate force gauges. For further information about the hydraulic force meter of the PCE-HFG series, please read the following technical data or call our Hotline: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. You can also reach us by using our contact form. Our engineers and technicians will gladly advise you regarding the hydraulic force meter of the PCE-HFG series or any product in terms of regulation and control, or scales and balances of PCE Instruments.

- Stainless steel force transducer
- Measurement of static compressive force
- Ring force transducer and plunger

- Screwmount for axial assembly
- Integrated drag pointer
- Display in Newton

Hydraulic force meter- PCE-HFG series: Technical data

Model

Measuring range

PCE-HFG 1K

0 ... 1.000 N

20 N

PCE-HFG 2.5K

0 ... 2.500 N

100 N

PCE-HFG 10K

0 ... 10.000 N

200 N

PCE-HFG 25K

0 ... 25.000 N

1.000 N

General technical specification about all models of the force meter

Measuring inaccuracy

±1,85 % of the measuring range
±2,5 % of the measuring range (only PCE-HFG 1K)

Display

Ø55 mm

Mounting holes

2 x M6

Environmental condition

0 ... -50°C

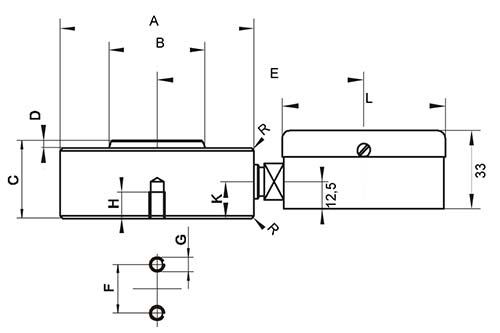

Dimensions of hydraulic force meter PCE-HFG series

Delivery content of hydraulic force meter –PCE-HFG series

1 x hydraulic force gauge PCE-HFG (selected model), 1 x instrument case, 1 x insertion plate,
1 x manual
