Mobile Load Corners MLE-F 5/10/20
Mobile load corners for pressure force measurement from 4 x 5 t to 4 x 20 t / 3 models with available nominal load of 20 t / 40 t / 80 t / very mobile due to battery operation and easy handling / with handheld remote control

Mobile load corners are used for non-legal weighing of machines, containers or similar standing loads. Furthermore an estimation of location of gravity center is possible. The mobile load corners can be used separately for load measuring. Every mobile load corner consists of a power pressure sensor and strain gauge. The sensor has a base plate below and a pendulum plate above to initiate pressures optimal. A casing is built around the sensor that can also be turned under load at 180°. Measuring electronic, display, control buttons, radio module with aerial and a battery compartment are located in the casing. After switching on the device measuring electronic starts and radio module waits for a free time slot in order to be registered with the wireless remote control. The remote control searches for radio signals with correct addressing after switching on and shows pressure values of mobile load corners. The remote control can send instructions to mobile load corners. The remote control checks if the instruction will be received and also performs a retransmission if necessary.. If you have any questions about these products, please contact us: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. An overview of all load corners can be found here: load corners. Our technicians and engineers will be happy to help you with this force gauge and all other products in the field of measuring instruments, regulation and control and scales.

- Very robust display
- Nominal loads of 20 t/40 t/80 t
- Accuracy 0.2 %

- With USB interface
- Mobile due to the battery operation
- Remote control

Technical Specifications

Model

Measurement areas

MLE-F-5

4 x 5 t

MLE-F 10

4 x 10 t

MLE-F 20

4 x 20 t

Surface pressure per track line

4 x 5 t

10 N/mm² for 5 t

4 x 10 t

20 N/mm² for 10 t

4 x 20 t

40 N/mm² for 20 t

Display resolution

Display

4 ½ digits display

Maximum angle

3 mm/m

Maximum load

150 %

Breaking load

> 500 %

Reference temperature

23 °C

Nominal temperature range

-10 ... +50 °C

storage temperature range

-20 ... +70 °C

Protection class (EN 60529)

IP 54

Operating voltage per track line

4 x 1.5 V AA mignon cells

Operating time

140 h

Remote control

Frequency band

ISM band 868 MHz

Display rate

0.5 1/s

Range in visual contact

minimum 30 m

Display

5 digit LCD display 128 x 64 pixels, lighted

Off-center/sum ± display resolution

5.000 t/S 20.00 t ± 10 kg
10.00 t/S 40.00 t ± 10 kg
20.00 t/S 80.00 t ± 10 kg

Keyboard

membrane keyboard

Functions

on - off/tare/gross/net/canter of gravity/maximum value display

Operating voltage

4 x 1.5 VV mignon cells

Operating time

approx. 40 h

Nominal temperature range

-10 ... +50 °C

Storage temperature range

-20 ... +70 °C

Protection class (EN 60529)

IP42

Interface

mini USB-B socket, 5 pole

Weight without batteries

240 g

Dimensions

78 x 159 x 47 mm

Delivery content
1 x Mobile Load Corners MLE-F, 1 x remote control, 4 x AA batteries, 1 x user manual

Images of use

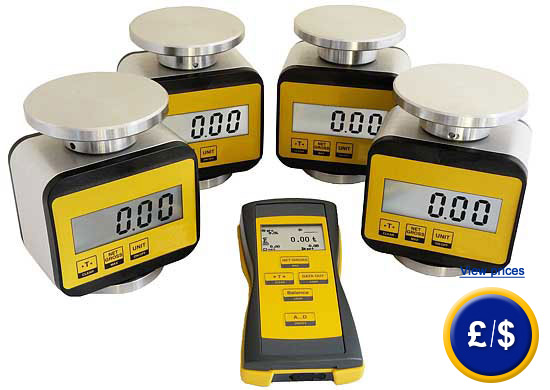

Here you can see a load corner MLE-F under a panel

Here you can see the remote control of the load corner MLE-F.

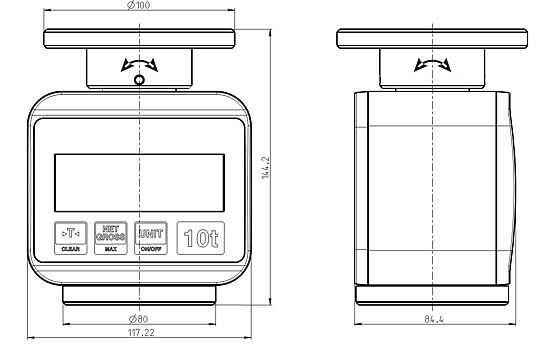

Here you can see technical dimensions of the mobile load corner MLE-F.

Additional components
ISO 9000 calibration, calibration certificate included
