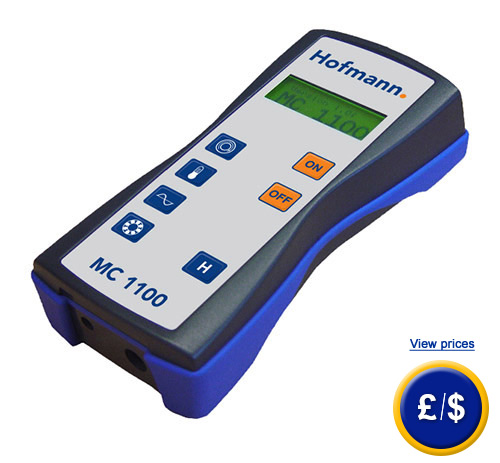

Oscillation Measuring System MC 1100 Set
oscillation measuring system with integrated rotation speed sensor / rates state of rolling bearing / captures most important units  / for recognition of critical operation ranges/
measurement of belt-tension and temperature possible through optional equipment

The oscillation measuring system MC 1100 Set is extensively applied for various activities and procedures in your firm. The oscillation measuring system MC 1100 is the basic oscillation measuring system to gauge the effective velocity speed veff according to DIN ISO 10816-3. Additionally it is used for the oscillation acceleration and for the state of rolling bearing gSP following the shock pulse process. By means of the integrated rotational speed sensor the rotational speeds of machines can be determined. Part of the application range for the oscillation measuring system MC 1100 Set are the oscillation control on machines and facilities, rating the state of rolling bearing, the control of rotational speeds at machines, recognition of critical operation ranges as well as the application for early detection of damages. On one hand the oscillation speed is measured with the oscillation measuring system MC 1100 Set , while on the other hand there is the alternative of measuring the oscillation acceleration. It is a measurement unit that is for example used for the analysis of mechanical vibration effecting a human. During the operation of the oscillation measuring system MC 1100 Set the operator can select between two frequency ranges, which allows rating either slow or very fast working machines accurately. Following the principle of the shock pulse process, the oscillation measuring system rates the oscillation spectrum of rolling bearings by the gSP value. The oscillation measuring system can be advanced due to two different sensors. Therefore we provide a temperature sensor and a sensor to measure the tension at belt-drives. All these functions qualify the oscillation measuring function as a multifunctional device facilitating inspection and maintenance of machines. If there are any questions about this oscillation measuring system MC 1100 Set, please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you in all vibration meters and all products in the field of measuring instruments, regulation and control and scales.

- Rotational speed sensor integrated
- portable, quickly ready to measure
- universally applicable

- to capture most important measurement units
- rates state of rolling bearing
- recognizes critical operational ranges

Technical Specifications

Measurement Ranges

Cumulative value for  oscillation

0 ... 999.9 mm/s eff or m/s² eff

State of rolling bearing

0 ... 999.9 gSP

Rotational Speed

30 ... 200,000 1/min / 0.5 ... 3,333 Hz

Temperature

0 ... +200 °C

Frequency Ranges

Cumulative value for oscillation

1-1,000 / 10-1,000 / 10-10,000 Hz

state auf rolling bearing

5 ... 50 kHz

Belt frequency

10 ... 1,000 Hz

Connections

Oscillation recorder

1 BNC measurement input

Frequency- / temperature sensor

1 Panel Jack, 5-pole

Charging adapter

1 Panel Jack

Display

graphic LCD with background lights 122 x 32 pixel

Dimensions

80 mm x 160 mm x 40 mm

Weight

350 g

Voltage Supply

NiMH battery 3 x 2700 mAh

Operational / Charging time

min. 6 hrs / approx. 2 hrs

Acceleration sensor

HMA 1140 100 mV/g

Examples of application

Simple selection of measurement task by pressing the respective key symbol at the oscillation measurement system

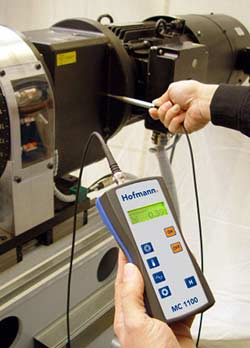

The oscillation measurement system MC 1100 Set during practical application at an operating machine

Delivery Content

1 x oscillation measuring system MC 1100 Set
1 x acceleration sensor
1 x HMA 1140, cable length 1.5 m
1 x probe tip
1 x magnet foot
1 x charger
1 x instruction manual
1 x transportation case

Optional Equipment

Belt tension incl. frequency sensor
The functions of the oscillation measuring system MC 1100 can be extended with an optional sensor for belt tension. Thus the oscillation measuring system MC 1100 becomes a multifunctional device to monitor and maintain machines.
