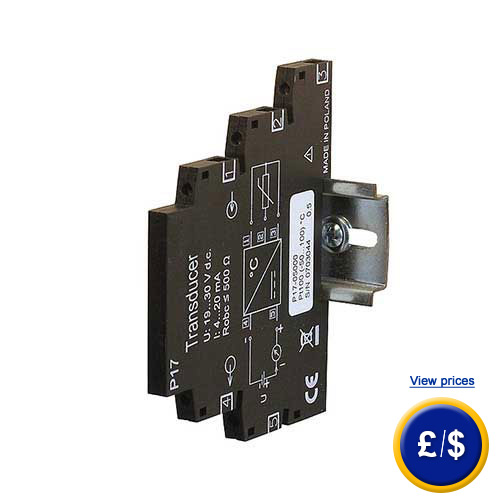

PT-100-Transducer PCE-P17PT
PT-100-transducer for resistance thermometers / Conversion in 4 ... 20mA / merely 6.2 mm wide / DIN rail mounting / Power supply 19 ... 30 V DC

The PT-100-transducer PCE-P17PT converts the output signal of a PT100. The PT-100-transducer PCE-P17PT issues the temperature signal as a 4 ... 20 mA standard signal. This standardized signal enables a simple processing. The PT-100-transducer PCE-P17PT is characterized by its simplicity. The PT-100-transducer PCE-P17PT is fed by an electricity loop. A special power supply for the PT-100-transducer PCE P17PT is not needed. If you have further questions about the PT-100- transducer PCE P17PT, please see the following technical data or use our contact form. Our technicians and engineers will assist you in regards to the PT-100-transducer PCE P17PT or any other of PCE Germany GmbH’s products in the fields of control engineering, instrumentation, or scales. Here is a list of other PT-100-transducers for a variety of applications in industry and research. For further information about the PT-100-Transducer PCE-P17PT, please read the following technical data or call our Hotline: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our engineers and technicians will gladly advise you with the PT-100-Transducer PCE-P17PT or any other product in the area of regulation and control, scales and balances of PCE Instruments.

- Signal converter for RTD
- Power supply via electricity loop
- Low installation width

- Mounting on DIN rail
- Output 4 ... 20 mA
- Simple design

Technical Specification of the PT-100-transducer PCE-P17PT

Input signal

PT100

Measuring range (depending on model)

-50 °C ... 100 °C
-50 °C ... 400 °C

Output signal

4 ... 20 mA

Load (RLOAD)

Max. 500 Ω

Conductor cross-section

0.2 mm ² ... 2.5 mm ² (AWG24-12)

Mounting width

6.2 mm

Power

19 ... 30 V DC

Weight

80 g

Ambient temperature

Connection diagram of the PT-100 converter PCE P17PT

Delivery content of the PT-100-Transducer PCE-P17PT

1x PT-100-Transducer PCE-P17PT, 1x manual
