RJ45 LAN Tester LanMaster 26
 RJ45 LAN Tester to identify signal types at RJ45 jacks / switch port searching function / switching impulse voltage test for VOIP and POE

This RJ45 LAN tester is designed for a quick determination of the data service connected to a jack or port. The respective network topology, e.g. 10/100/1000 MB Ethernet and the network protocols VOIP/ PoE (Power over Ethernet), is detected within seconds. Thus it is easy, reliable and quick to determine which type of network signals are connected to patch ports or jacks with RJ45 ports. The RJ45 LAN tester even checks which duplex mode or whether auto navigation is generated. Additionally the LanMaster 26 identifies via the polarity whether a network interface card or a switch/ hub or router is connected. If there are any questions about this RJ45 LAN tester LanMaster 26, please have a look at the technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you in all LAN testers and all products in the field of measuring instruments, regulation and control and scales.

- Prevents hardware from destruction due to prior    test of connecting box

- Checks availability of connection

- Identifies type of connection: (Ethernet, Fast       Ethernet, Gigabit Ethernet, Duplex-Mode and Auto-Navigation, VOIP, PoE)

- Checks on voltages via PoE (18 - 40 V)

- Switch port search function (blinking of links)

Technical Specifications

Network recognition

100baseTX ( IEEE 802.3u )
10baseT (not 100baseT4)
1000baseT (1 Gbit)

Telephone recognition

no

Port identification

yes

Network test

Ping, double IP addresses, response times, port-search function (at hub or switch), availability, DHCP server, MAC addresses

Jack

RJ45 (male)l

Surrounding

0 ... +50 °C / 5 ... +95 % rH

Power Supply

1 x 9 V bloc battery (inclusive)

Dimensions

173 x 36 x 33 mm

Weight

114 g

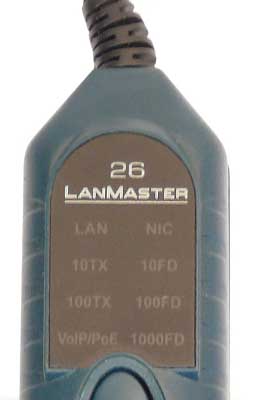

RJ45 LAN tester LanMaster 26 during testing: Search for signal type at RJ45- Port

Here you can see the display of the RJ45 LAN tester LanMaster 26. The following symbols will be displayed depending on the network signal type that is adjacent:

- LAN: Local Area Network

- 10TX

- 100TX

- VoIP/PoE: Voice over IP / Pover over Ethernet

- NIC: Network Interface Card

- 10FD (Full Duplex)

- 100FD (Full Duplex)

- 1000FD (Full Duplex)

Delivery content

1 x RJ45 LAN tester LanMaster 26 (Psiber), 1 x battery, 1 x instruction manual
