Surface

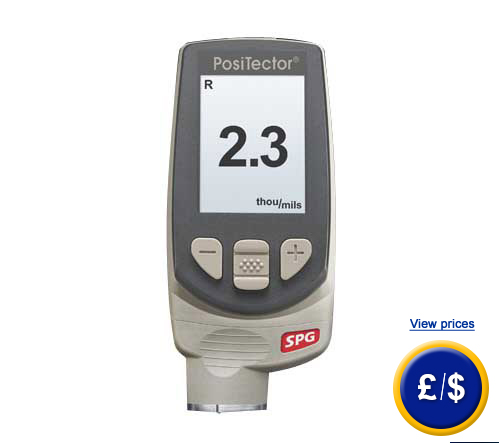

Profile Meter PosiTector SPG
Surface Profile Meter PosiTEctor SPG according to ASTM D
4417-B, US Navy NSI 009-32 / measures and stores Peak-Flows of the surface
height / large, legible, LCD display
|
The
Surface Profile Meter PosiTector SPG is an electric manual measuring device
measuring the surface roughness of surfaces that are treated with abrasive
blasting. The Surface Profile Meter PosiTector SPG measures and stores high
Peak-Flows as well as low Peak-Flows of the surface height. Due to its fast measurement
of more than 50 measurements per minute the surface profile meter is optimized
for quick and precise measurement of surface roughness for large surfaces.
Furthermore the surface profile meter displays continuing measuring values
and updates those values as well. The surface profile meter is resistant to
acids, oil, water and dust and by that even applicable for roughest application
areas. The accuracy of the surface profile meter is to detect with the
metallic slice included in delivery as well as the zero plates made of glass.
After the surface profile meter is calibrated to a zero point, the profile is
being detected by recording the height difference between profile maximums and
minimums. If there are any questions about this surface profile meter, please have a look at the
technical specification below or call: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. Our technicians and engineers will gladly advise you in all roughness
meters and all products in the field of measuring
instruments, regulation
and control and scales.
|
|
|
- 50 measurements per minute
- large, legible LCD display
- one-hand- menu navigation
|
- zero plate and metal slice included
- rubber case with belt clip
- protection from acid, oil, water and dust
|
Technical Specifications
|
Measuring range
|
0 ... 500 µm
|
Accuracy
|
±
5 µm + 5 %
|
Hard
metal tip
|
60
º
|
Dimension
|
137
x 61 x 28 mm
|
Weight
|
140 g
|
Norm standards
|
ASTM D 4417-B, US Navy NSI 009-32
|
Delivery
content
|
1 x
Surface Profile meter PosiTector SPG
1 x zero glass plate
1 x metal slice
1 x rubber case with belt clip
1 x AAA alkaline batteries
1 x instruction manual
1 x nylon carrying bag with shoulder belt
|
|
|
|
