Temperature Data Recorder Log10
Temperature data recorder for long-term measurement and documentation/ large internal data storage for 20,000 measuring values/ large display for current value display and max-min-average display

The temperature data recorder Log10 is customized for recordings of temperature developments during transportation and storage and is applicable for constant temperature monitoring in various areas. The temperature data recorder is an economic solution for monitoring without extensive installation. An additional useful function is the dew-point function included in the software. The temperature data recorder monitors the temperature for purposes of quality assurance in producing industries, in laboratories and in warehouses. In the food industry the temperature data recorder is used to monitor the conditions during transportation in accordance to HACCP. For further information about the temperature data recorder Log10, please read the following technical data or call our Hotline: UK customers +44(0) 23 809 870 30 / US customers +1-410-387-7703. You can also reach us through our contact form. Our engineers and technicians will gladly advise you regarding the temperature data recorder Log10 or any other product in terms of regulation and control or scales and balances by PCE Instruments.

- Large display for instantaneous value display
  and min-, max-, and average- indication
- Battery state display
- Easy to handle windows software
- Hi-Lo- alarm optical via LED
- Storage for 20,000 measuring values
- IP65- waterproof

- Measuring interval adjustable between 30 sec.
  and 24 hrs.
- Battery easy to change
- High accuracy: ± 0.5°C
- Can even be delivered as start-up-kit with
  software ( see optional equipment)

Technical specifications of the Temperature Data Recorder

Measuring range

-30 ... +60 °C

Resolution

0.1°C

Accuracy

± 0.5 °C / -20 ... 50 °C
± 1 digit ± 0.7 °C (remaining range)

IP protection

IP65

Display operation range

-10 ... 70 °C

Storage capacity

approx. 20,000 measuring values

Interface

USB

Display

7 segments LCD

Enclosure

Synthetic (ABS)

Dimensions

92 x 55 x 20 mm

Weight

95 g

Voltage Supply

1 x CR2032 3 V

Examples for application

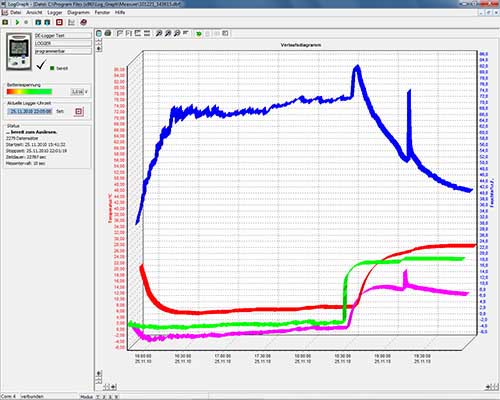

Software

Delivery content

1 x Temperature data recorder Log10, 1 x battery, 1 x instruction manual

Additional equipment

- Start-up-kit LOG 10 (data recorder for temperature + software + USB cable)
- Windows software de-graph
- Connectable wall holder
- Connectable holder with magnet
- Spare battery CR2032
- Spare USB cable
- Calibration certificate at -18 °C and 2 °C (2 x temperatures)
