Scale for Dosing Tanks KSBN S series
Scale for dosing tanks up to 8 t / measuring cells IP 68 protected / with 4 output switches / Montage board on ball-bearing / 4 ... 20 mA analogue output / table and panel montage

The scale for dosing tanks is a construction designed for various tanks. Thus the scale for dosing tanks facilitates monitoring filling levels and providing the necessary data set for further processing due to its various outputs. With all the information that the scale for dosing balances provides, you can e.g. control a dosing of several components, showing the filling levels in a graphic and acoustic form, while monitoring material flows during production processes. Therefore the scale for dosing tanks stands out by a simple design and construction. First the modules between the board and the ball-bearing need to be mounted. After that the four measuring cells need to be connected with a junction box, which must be then connected with the processing unit. Finally the parameters of the system need to be set-up and you are good to go. The scale for dosing tanks will be configured before delivery, so that you only need to feed-in the tare weight of the empty tanks, if necessary. Please make sure to secure the dosing tanks since the scale for dosing tanks has no safeguard to prevent the dosing tanks from tilting or protect them against impacts. The modules of the scale for dosing tanks has platforms that are mounted on a ball-bearing to compensate any unevenness of the tanks. The processing unit of the scale for dosing tanks features four output switch, which allow e.g. operating the PLC of dosing feeders. In addition the scale for dosing tanks supports an analogue output. The display of the scale with dosing tanks can be mounted easily to a table or by using additional equipment, it can be constructed as a panel unit. In case that you should have more questions regarding the Scale for Dosing Tanks KSBN S series, please read the following technical data, use our contact form or call us: +44 (0) 2380 98703 0. Our technicians and engineers will gladly advise you regarding tank scales or any other product in the field of Control Systems, Laboratory Equipment, Measuring Instruments or Scales and Balances of PCE Instruments Ltd.

- For Loads up to 8 t
- IP 68 weighing cells made of stainless steel
- Montage platform on ball-bearing
- 4 output switches

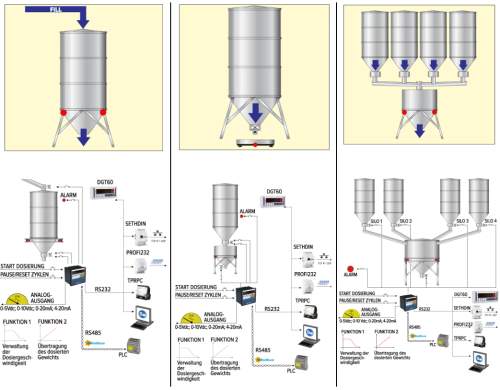

- Dosing program for several components at once
- Manual and automatic dosing programm

- Maximum of 15 dosing formulas can be saved
- 4 ... 20 mA analogue output
- 5 m display cable (extension optional)
- Display with small stand
- Digit height 20 mm
- Panel montage optional

* Please consider weight and its distribution on the construction in order to prevent an overload on one of the weighing cells.

Display

LED red / digit height 20 mm

Montage

Incl. small stand / panel montage optional

Functions

- current weight
- dosing single component
- dosing several components at the same time
- automatic dosing
- manual dosing
- backup of data
- memory for up to 15 dosing formulas
- timer option e.g. to control a mixer
- manual feed-in of tare weight

Printer

optional, see additional equipment

Inputs

4 config. photocoupler inputs 5 mA ... 20 mA

Outputs

1 x bi-directional RS 232 interfaces
4 x MOSFET 150 mA output switches
1 x 16 Bit analogue output 4-20 mA / 0-10 V
RS485 and PROFIBUS optional

Dimensions of Display

170 x 170 mm
(panel 161 x 162 mm)

Power Supply

12 V, adapter included

Length of cable connection between display and power provider

5 m (extension optional, see additional equipment)

Power Provider

IP67 / ABS / for up to 4 cells

Weighing Cells

IP68 / stainless steel / Accuracy class C 3

Length of cable between weighing cells and power provider

5m / Ø 5 mm

Relative aberrance

± 0.2 % F.S

Operational Temperature

- 20 °C ... + 60 °C

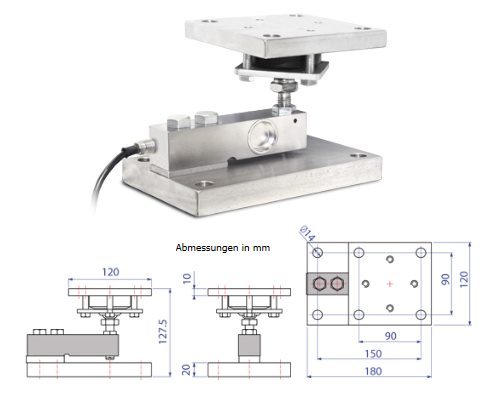

Montage Module

Steel zinc plated / on ball-bearing

Precaution: The montage modules do not provide any safety measure against tilting or impacts. Designing a construction to protect the installation against, e.g. wind, vibration, impacts etc. must be planned by the customer's engineers and mechanics.

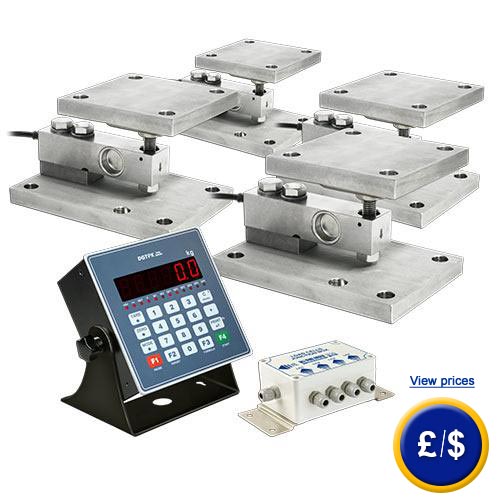

Delivery content of the Scale for Dosing Tanks PCE-KSBN S series

1 x Scale for Dosing Tanks PCE-KSBN S series (configured) with 4 montage modules, 4 x weighing cells, 1 x junction box, 1 x display, 5 m cable, 1 x instruction manual on CD

Optional Equipment of Scale for Dosing Tanks PCE-KSBN series

Display connector cable LCCBM
In case the standard display cable of the scale for dosing tanks should be too short with its 5 m length, you can order a longer cable. Price per additional meter

Panel Installation kit DGTSTF
The Display of the scale for dosing scales features an holder element to mount to the wall or to place on a table. But the display can be also mounted into a control panel. Therefore you can order this panel installation kit.

Printer for Installation into panel TPRPC
The scale for dosing tanks can be connected via its RS232 interface to a printer, so the measurement results can be printed out. Therefore this printer can be installed into a panel system. Paper width: 58 mm
