Platform
scales PCE-EP P Series |
||
|

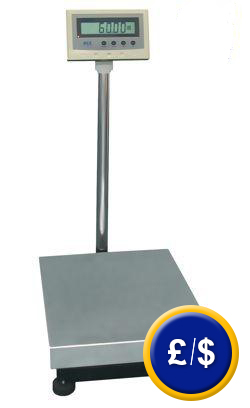

The
robust industrial platform scales are true all-rounder. The tripod of the
platform scales can easily be separated from the platform and the display with
plug is approx. 1.6 m long. The display of the platform scale is protected by a
stainless steel case what meets IP54 protection. The display can be mounted to a
table, wall or tripod. |
||
|
|
||
| - Single-point
platform scales (1 weighing cell) - Dual-interval scales 15 / 30 kg and 60 / 150 kg - freely adjustable unit of measurement kg/... - Bi-directional RS-232 interface - Mains or rechargeable battery powered - Display IP54 protected - Tripod incl. holder can be removed - Auto Power Off function (can be deactivated) |
- Hold function (freezes weight
indication) |
|
|
Technical specifications of
the platform scales PCE-EP P series
|
||
| Measuring range | ||
| PCE-EP 30P | max. 1 = 15 kg / max.2 = 30 kg | |
| PCE-EP 150P | max. 1 = 60 kg / max. 2 = 150 kg | |
| Resolution | ||
| PCE-EP 30P | up to 15 kg = 2 g, above 15 kg up to 30 kg = 5 g | |
| PCE-EP 150P | up to 60 kg = 10 g, above 60 kg up to 150 kg = 20 g | |
| Accuracy | ± 3 d (3 x the resolution) | |
| Platfrom size | ||
| PCE-EP P1series | 400 x 500 mm | |
| PCE-EP P2series | 500 x 600 mm | |
| Tare function | multiple tare function of full weighing range | |
| Interface | RS-232 bi-directional /D-SUB 9 female | |
| optional: analogue output 4-20 mA 1/1000 + 4 potential free outputs LO / OK / HI / stable adjustment as input ot continuous signal possible | ||
| Display | LCD with digit height 25 mm | |
| Units of measurement | kg / lb | |
| and freely adjustable weighing units such as kg/m | ||
| cable length to display | approx. 160 cm / with plug | |
| Power supply | 6 V / 4.5 Ah rechargeable battery or 9 V / 1.2 A | |
| mains adaptor (incl.) | ||
| Protection class | IP 54 | |
| Operating temperature | 0 ...+40° C / 10 ... 80 % r.h. | |
| Weight | ||
| PCE-EP P1 series | approx. 13 kg | |
| PCE-EP P2 series | approx. 15 kg | |
 |
 |
|
| IP54 display unit of platform scales with backlight LCD | Rear view of display of the platform scales PCE-EP series with RS-232 interface. | |
 |
 |
|
| To enlarge technical drawing of the platform scale PCE-EP P1 with a platform size of 400 x 500 mm, please click on the technical drawing. | To enlarge technical drawing of the platform scale PCE-EP P2 with a platform size of 500 x 600 mm, please click on the technical drawing. | |
|
Delivery
content of the platform scales PCE-EP P series
1 x platform scales, display incl. rechargeable battery, tripod incl. holder, mains adaptor and instruction manual. |
||
|
Typical
application of the platform scales PCE-EP P series
|
||
| The platform scales of the PCE-EP P series offers the possibility to enter an individually definable unit of measurement, in addition to the conversion factor related to a kg and the platform scales will show the conversion in the display. The user in the picture on the right has entered the cable length as conversion factor and can now determine the cable lengths by means of the platform scales. For stocktaking activities, the platform scales of the PCE-EP P series are particularly useful as the platform scales also have a piece counting function. However, in comparison to the individually definable unit of measurement, no decimal place can be shown when the piece counting function is used. |  |
|
| The platform scales of the PCE-EP P series offers the possibility to separate the tripod including the holder from the platform. This means that the platform scales can also be used as a table-top scales. For the dosing procedure illustrated on the right, the platform scales can carry out multiple taring comprising the full weighing range. This gives the user the possibility to tare the individual ingredients. For particularly sensitive ingerdients, the platform scale soffer adjustable filters which change the reaction of the scales and can thus also indicate smaller weight increases in the display. |  |
|
| Optional accesories | ||
| Software Procell | ||
|
The multilanguage PC software can simulate key
entries and transfer the data of the platform scales, e.g. directly in Excel.
You also have the possibility to save data in the backgroung as a TXT file (data
cable not included in delivery) Item no. PCE-SOFT-Procell |
 |
|
| USB converter | ||
|
The USB converter enables a direct connection of the
platform scales through the RS-232 interface to an USB interface of the PC. The
cable length of the converter is approx. 170 cm Item no. RS232-USB |
 |
|
| USB storage adaptor | ||
|
If no PC or printer is connected to the verifiable
platform scales, the weighing data can be saved to a pen drive as a TXT file,
along with time and date. Connection is enabled via the RS-232 interface and the
adaptor requires an external source of power supply ( mains adaptor included) Item no. PCE-USM |
 |
|
| ISO calibration / certificate | ||
|
For companies who want to include the platform
scales to their internal pool of test equipment. The work regarding the factory
calibration certificate is carried out at the internal test laboratory and is a
target / actual comparsion. Item no. CAL-TS-150 |
 |
|
| Switched outputs | ||
|
A 4-20 mA analogue output and 4 potential-free
contacts are integrated in teh platform scales. When the platform scales
indicate 0 kg, the analogue output supplies 4 mA and in case of the maximum load
of the platform scales, it supplies 20 mA. Resolution 1/1000 100-350 Ω.
The potential-free contacts are controlled by the set limit values. 5A 30 VDC
and 5A 250 VAC. If interfaces are built into the platform scales, power supply
by rechargeable batteries is not possible. Item no. EP-4-20-PFC |
  |
|
| Large display | ||
|
If the front size of the PCE-EP P platform scales is
not sufficiently bif, a large display can be connected via RS-232 interface on
the back of the display. The cable length between that platform scales and the
large display is approx. 10 m. The red LED digits have a height of 125 mm. Item no. PCE-TP05-W |
|
|
| Thermal label printer | ||
|
To print the results from the platform scales on
stickers, along with time and date. Label size approx. 57 x 32 mm (1 roll incl.) Item no. PCE-EP 1 |
 |
|
| Continuous paper thermal printer | ||
|
To print results from the platform scales directly
on continuous paper, along with time and date. The printer comes with RS-232
printer cable and mains adaptor, paper width 112 mm. (1 roll incl.) Item no. PCE-BP1 |
 |
|
|
|
 |
|
